Replacement Part List

48 V ELECTRIC ZERO TURN MOWER − MODEL NOS. RY48ZTR75, RY48ZTR100
2

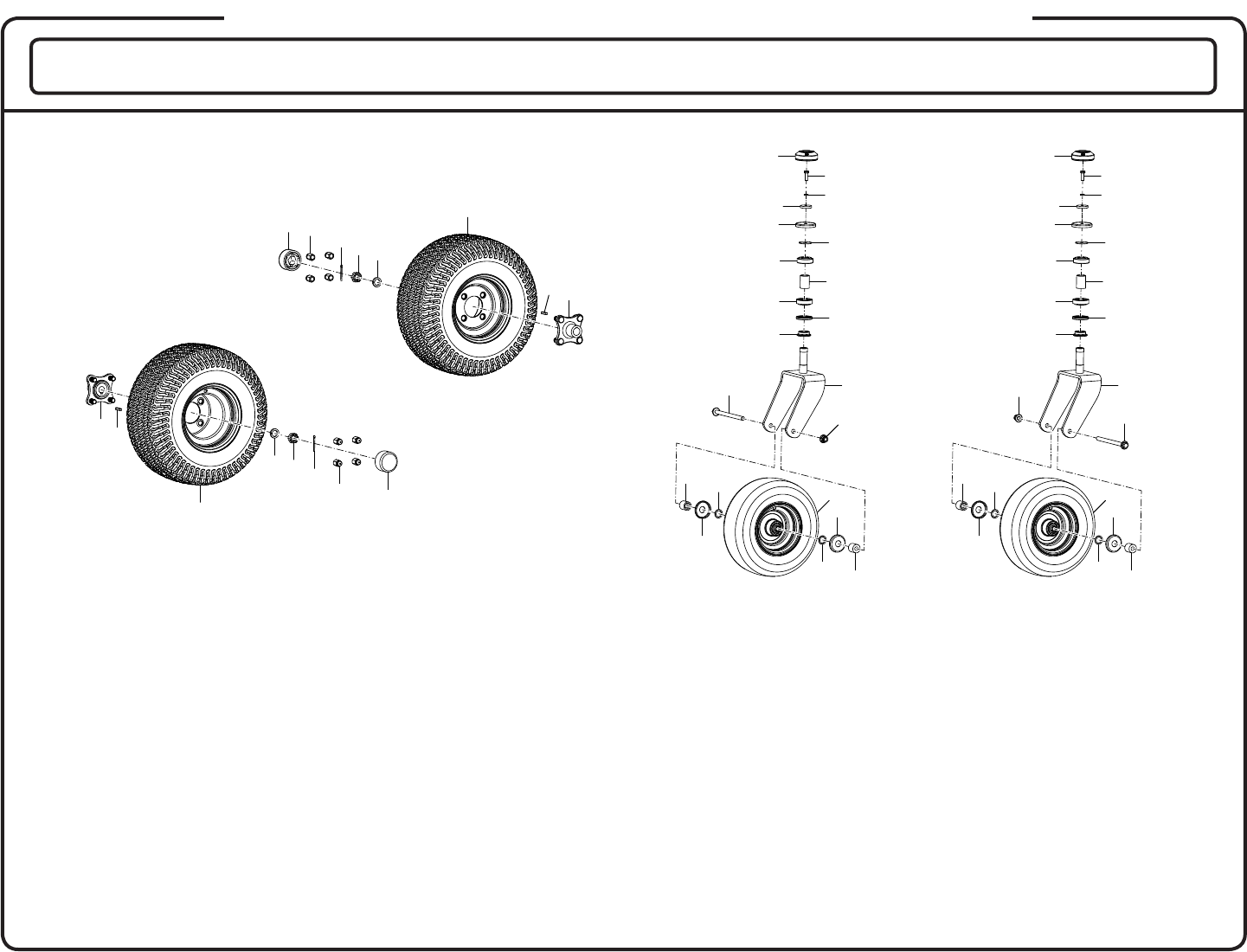

FIGURE A
13
13
2
1
8
1
2
8
12
6
20
15
19
14
18
24
16
21
22
17
23
18
5
5
9
9
25
25
10
10
15
19
14
18
24
16
21
22
17
23
18
11
11
4 4
2
1
8
1
2
8
12
6
20
7
7
3
3
WHEEL ASSEMBLY
The model number will be found on a label under the seat. Always mention the model number in all correspondence regarding your LAWN MOWER
or when ordering replacement parts.
1 994842001 Washer (28 x 20.5 x 2t) ......................................... 4
2 996997001 Caster Wheel Spacer ............................................ 4
3 996988001 Key (6 mm x 6 mm x 30 mm) ................................ 2
4 996996001 Caster Wheel ........................................................ 2
5 997139001 Drive Shaft Cotter Pin ........................................... 2
6 996999001 Flange Nut (M12) .................................................. 2
7 996987001 Wheel Hub ............................................................ 2
8 994857001 Front Wheel Bearing Cover ................................... 4
9 997138001 Castle Nut (M20) ................................................... 2
10 997134001 Lock Spring Washer (20.6 x 30.6 x 4.8t) ............... 2
11 996989001 Rear Wheel Assembly ........................................... 2
12 996998001 Flange Bolt (M12 x 170 mm, Hex Hd.) .................. 2
13 996029001 Wheel Hub Cover .................................................. 2
14 996993001 Bearing Assembly Spacer .................................... 2
15 996991001 Bearing Assembly Base ........................................ 2
16 994770001 Lock Washer (M8) ................................................. 2
17 997142001 Bolt (M8 x 25 mm) ................................................. 2
18 996992001 Roller Bearing (ID 25 mm x OD 52 mm) ................ 4
19 997125001 Rubber Seal .......................................................... 2
20 996990001 Caster Fork ........................................................... 2
21 996994001 Bearing Assembly Cap ......................................... 2
22 996995001 Fender Washer (OD37 x ID8.4 x 6t) ...................... 2
23 997130001 Caster Fork Cover ................................................. 2
24 997036001 Fender Washer (OD40 x ID12.5 x 2t) .................... 2
25 997143001 Acorn Nut (M14) .................................................... 8
