Replacement Part List

48 V ELECTRIC ZERO TURN MOWER − MODEL NOS. RY48ZTR75, RY48ZTR100
19
KEY PART
NO. NUMBER DESCRIPTION QTY
1 996346001 Hex Nut (M8) ....................................................... 12
2 997102001 Battery Cable 2, ZTR ............................................ 1
3 997133001 Screw (M5 x 25 mm) ............................................. 1
4 997049001 Battery Tray Slider ................................................. 2
5 997092001 Battery Shield, ZTR ............................................... 4
6 996269001 LPC12-75 Battery ................................................. 4
7 996363001 Battery Limiter 2 ................................................... 2
8 994923001 Battery Tray, Riding Mower ................................... 1
9 997050001 Battery Tie Down .................................................. 1
10 994771001 Washer (M8) .......................................................... 1
11 996272001 Battery Cable 1 ..................................................... 3
12 994827001 Washer (24 x 8) ..................................................... 2
13 996046001 Bolt (M8 x 25 mm) ................................................. 2
14 996351001 Battery Holder Bracket ......................................... 2
15 994770001 Lock Washer (M8) ................................................. 3
16 996213001 Anchor Screw, Bungie, Riding Mower .................. 1
17 996038001 Metal Bushing, Battery Tray .................................. 2
18 997096001 Hex Bolt (M8 x 240 mm) ....................................... 1
19 996350001 Threaded Rod (M8 x 100 mm) .............................. 4

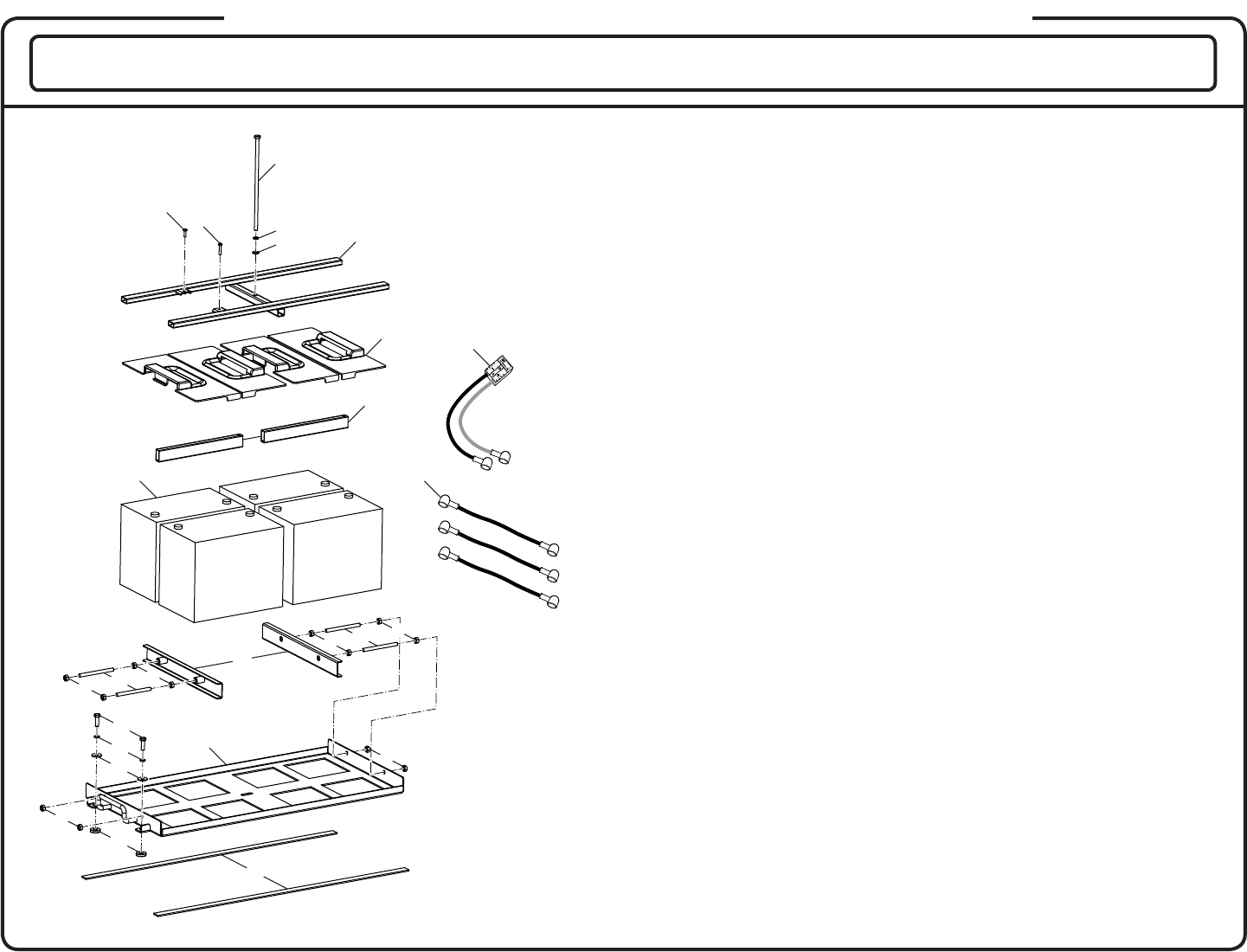

FIGURE N
BATTERY AND BATTERY TRAY ASSEMBLY
(RY48ZTR75 ONLY)
18
16
11
3
6
8
2
10
9
5
7
1
1
19
13
15
12
17
4
19
1
1
1
1
14
15
The model number will be found on a label under the seat. Always mention the model number in all correspondence regarding your LAWN MOWER
or when ordering replacement parts.
