Replacement Part List

48 V ELECTRIC ZERO TURN MOWER − MODEL NOS. RY48ZTR75, RY48ZTR100
17
FIGURE L

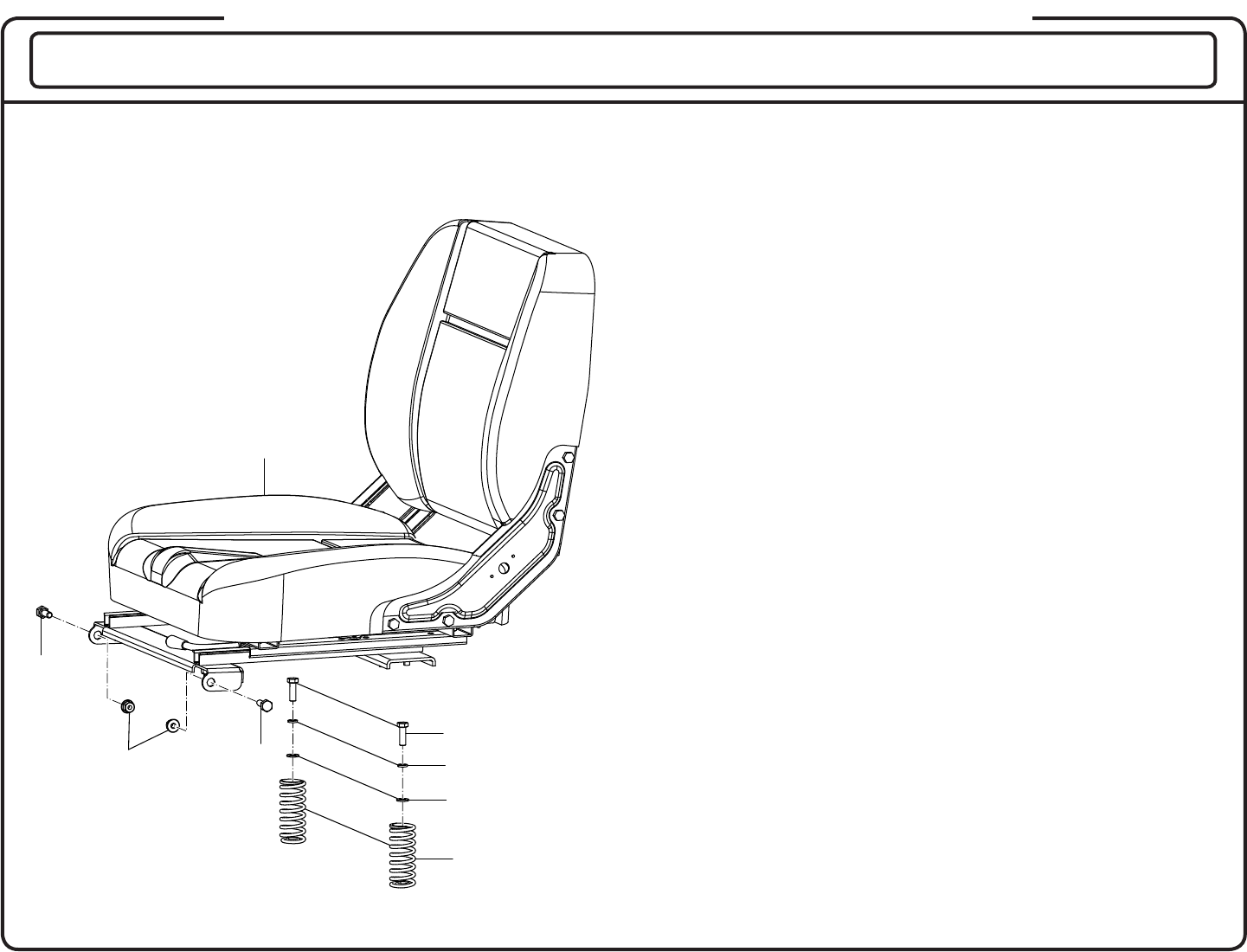

SEAT AND SEAT SPRINGS
The model number will be found on a label under the seat. Always mention the model number in all correspondence regarding your LAWN MOWER
or when ordering replacement parts.
5
3
3
7
1
4
6
2
1 994867001 Flange Nut (M8) .................................................... 2
2 997073001 Seat Spring, ZTR .................................................. 2
3 994849001 Shoulder Bolt (M8 x 20 x 4) .................................. 2
4 994770001 Lock Washer (M8) ................................................. 2
5 997054001 Seat, ZTR .............................................................. 1
6 994771001 Washer (M8) .......................................................... 2
7 996046001 Bolt (M8 x 25 mm) ................................................. 2
KEY PART
NO. NUMBER DESCRIPTION QTY
