3. Secure the Anamorphic Lens Holder to the plate using the Hex Bolts/Washers (item #6)
and Yaw/X
Adjustment Levers that you removed in Step 1.
4. Use the Lens Mounting Screws to attach the Lens Adapter Ring (item #1) to the Pitch
Adjustment Yoke (item #2); see
Figure 3-28. (Use the round, threaded holes on the
yoke.)
5. Use the Height/Y Adjustment T-Screws (item #3), Pitch Adjustment T-Screws (item #4)
and T-Nuts (item #9) to attach the Pitch Adjustment Yoke and Lens Adapter Ring to the
Anamorphic Lens Holder. The Yoke should be as close to the primary lens as
possible.
6. Attach the lens to the Lens Adapter Ring by threading it clockwise.

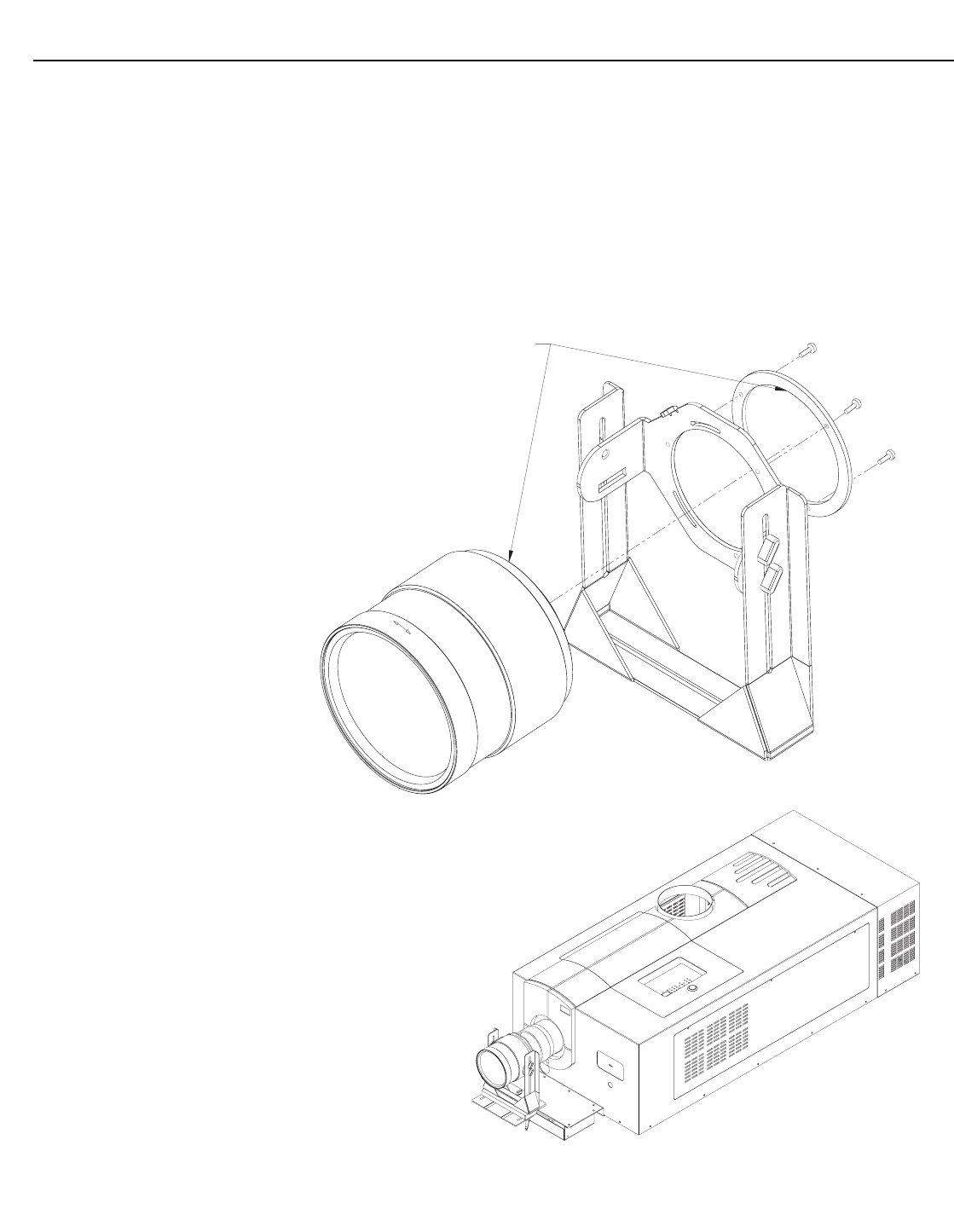

Figure 3-28. Attaching the Anamorphic Lens to the Lens Ring
Lens threads into ring
