3.9
Maximizing Light
Output
Upon powering up the projector with a newly installed/replaced lamp, use the LampLOC
feature of the SC-1 to adjust the lamp position to help ensure optimized operation as well
as peak brightness at the screen. You do not need to display an image on-screen to do
this; however, the lamp must be on and the shutter open.
To perform the LampLOC adjustment:
1. Press MENU on the built-in keypad or TheaterMaster remote control to display the
Main Menu.
2. Select Lamp from the Main menu.
3. Select LampLOC from the Lamp menu (see Figure 3-25).

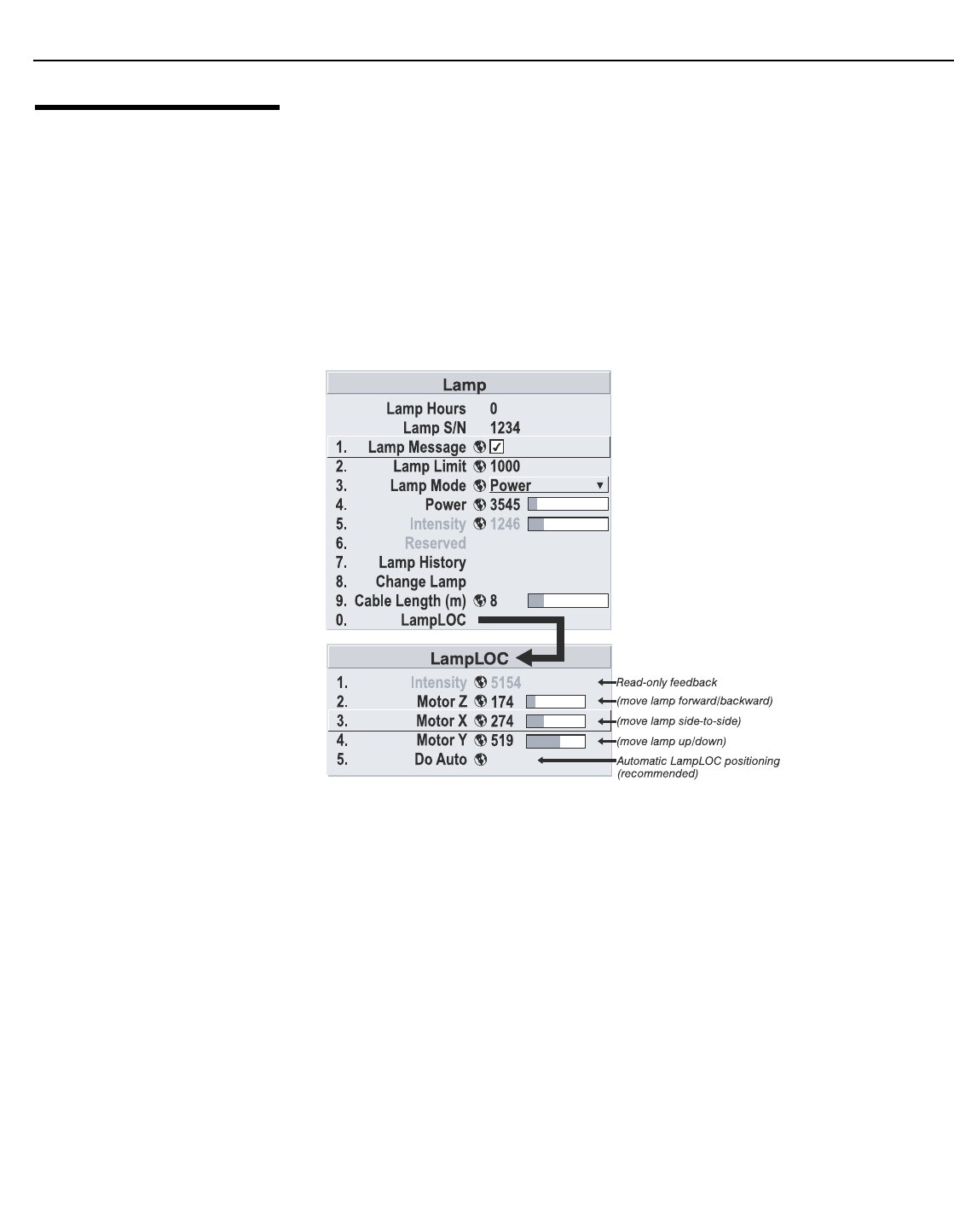

Figure 3-25. Using LampLOC to Align the Lamp
4. For best results in most applications, select Do Auto. The motorized lamp adjustments
will begin and, in conjunction with an internal light sensor, will take a minute or two to
position the lamp for optimized brightness. If desired, you can operate the motors
individually and use the Intensity reading at the top of the menu for feedback.
Once you have done this LampLOC adjustment, the lamp will be well-centered and
distanced correctly from the remainder of the illumination system. You can re-adjust it as
needed at any time.
