Installation
30 Runco SC-1 Owner’s Operating Manual
PRE
L
IMINAR
Y
Attach Extension Bracket
to Lens Motor
Use the supplied hardware to attach the lens motor extension bracket to the top of the
lens motor as shown in
Figure 3-10.

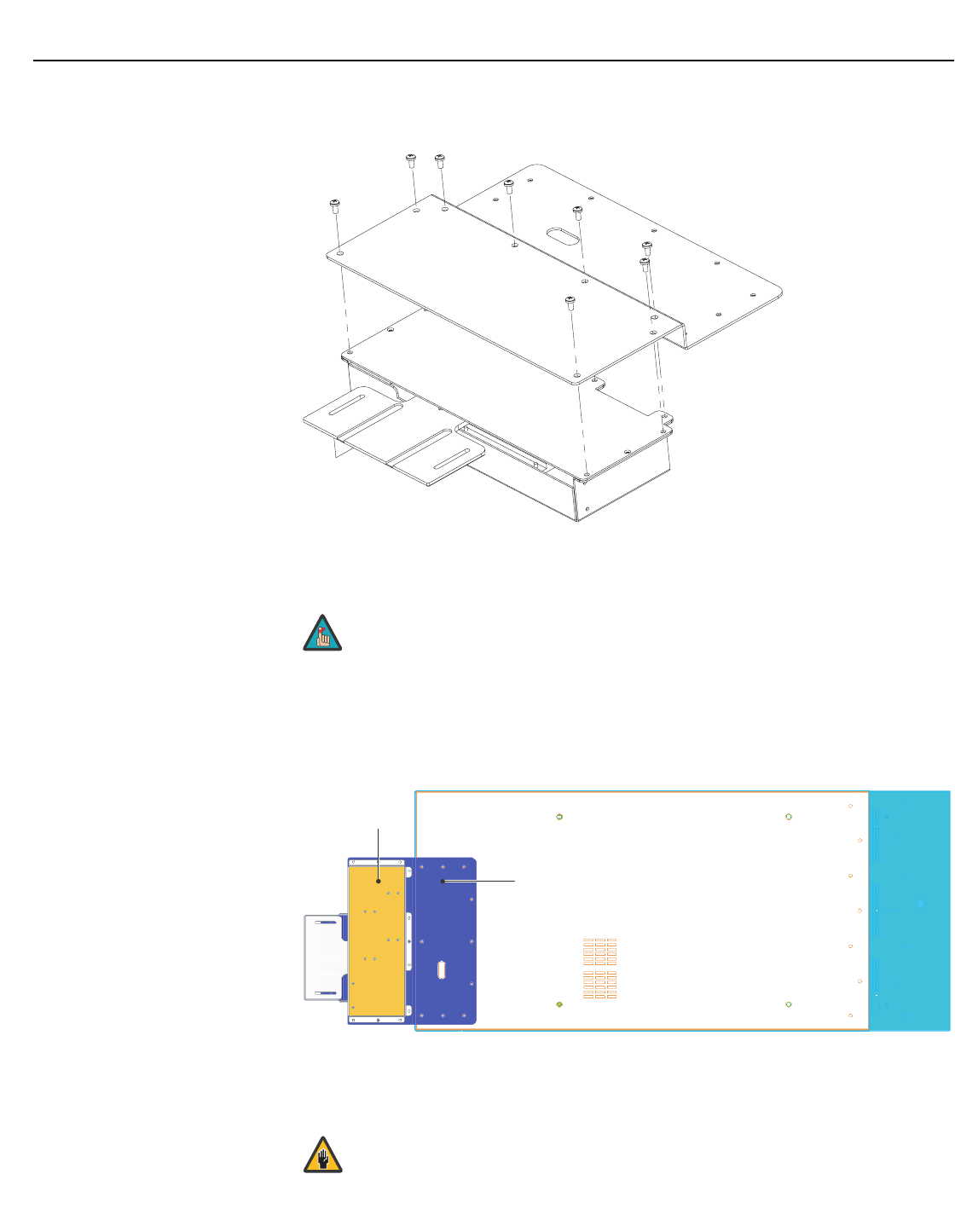

Figure 3-10. AutoScope Lens Motor with Extension Bracket
Install Anamorphic Lens
Motor
Line up the 10 mounting holes on the lens motor extension bracket with those on the
bottom of the projector. Secure the motor to the projector with the 10 screws provided for
this purpose. See
Figure 3-11.
Figure 3-11. SC-1 with AutoScope Lens Motor (Bottom View)
➤
➤
The anamorphic lens mounting kit is partially pre-assembled at the
factory – the AutoScope lens motor and lens mounting assemblies
are both fully assembled.
DO NOT OVER-TIGHTEN THE SCREWS.
Note
Lens
Motor
Extension
Bracket
Caution
