Controls and Functions
12 Runco SC-1 Owner’s Operating Manual
PRE
L
IMINAR
Y
7. ENTER BUTTON
When an item is highlighted on the OSD, the ENTER button selects the item.
8. DOWN BUTTON
Use to direct select aspect ratios or move the menu cursor down in the OSD. When
no menu is present on-screen, this button toggles through the different aspect ratios,
in this order:
Virtual Cinema - Cinema - VirtualWide - Letterbox - Standard (4:3) - Anamorphic
9. RIGHT BUTTON
Used to direct select inputs or move the menu cursor right in the OSD. When no
menus are present on-screen, the RIGHT button toggles through the different
sources, in this order:
Composite - S-Video 1 - S-Video 2 - Component SD - HD/RGB 1 - HD/RGB 2 -
HDMI
1 - HDMI 2
10. MENU BUTTON
Press the MENU button to bring up the main menu. Also, if you are in an adjustment
mode or function, press MENU to bring the menu back one level.
2.5
DHD Controller Rear
Panel

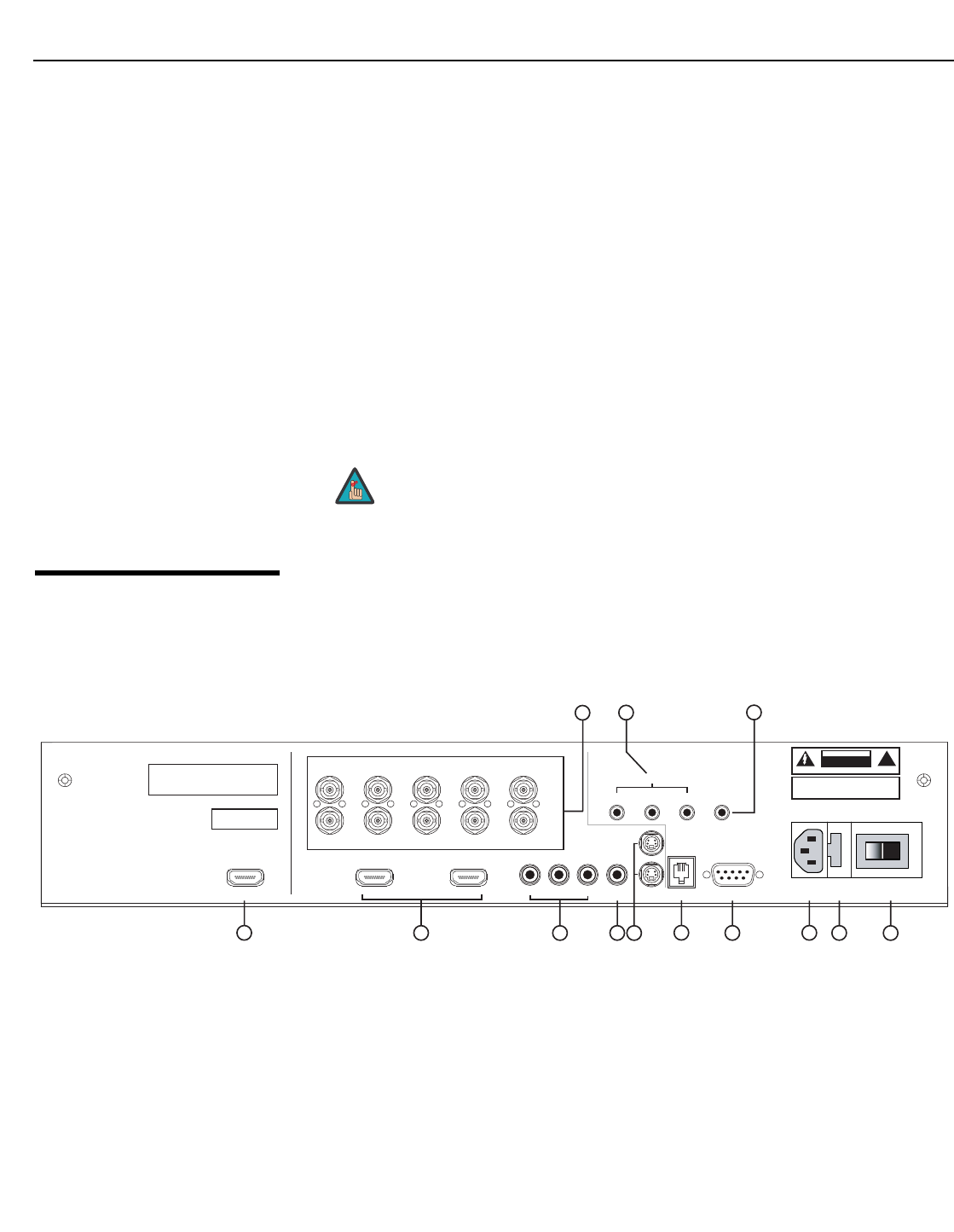

Figure 2-5 shows the rear connector panel on the DHD Controller.
Figure 2-5. DHD Controller Rear Panel
Outputs 1. HDMI OUT
Connect this to Input 2 (DVI) on the SC-1 (see Figure 2-2).
Inputs 2. HDMI 1 / HDMI 2 (Digital)
Two, HDCP-compliant digital video inputs for connecting a DVD player or HD tuner
with a DVI or HDMI output.
The UP, DOWN, LEFT, RIGHT, ENTER and MENU buttons are
functional only when an analog source (HD/RGB, SD Component,
Composite or S-Video) is selected.
Note
Pb Pr Y
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
HD1
HD2
1
2
R/Pr G/Y B/Pb
R/Pr G/Y B/Pb H V
HDMI 1 HDMI 2HDMI Out
HV
TRIGGERS
RS-232 Out
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.
AVI S: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
100-230VAC 50-60 Hz, 165 Watts Max
INPUTS
SYSTEM CONTROL INTERFACE
Component Video
Serial No
Video Processor / Controller
Model
Made In USA
1
2
4
5
10
11
12 13
8
6
79
3
➤
➤
