Controls and Functions
Runco SC-1 Owner’s Operating Manual 9
PRE
L
IMINAR
Y
2.3
SC-1 Control Panel
The SC-1 control panel includes an IR sensor, two-digit error code window, LCD status
display and built-in keypad. The built-in keypad provides access to all software controls
needed for working with the projector. (For more convenient functionality, use a remote
control or serial commands via the DHD Controller.)

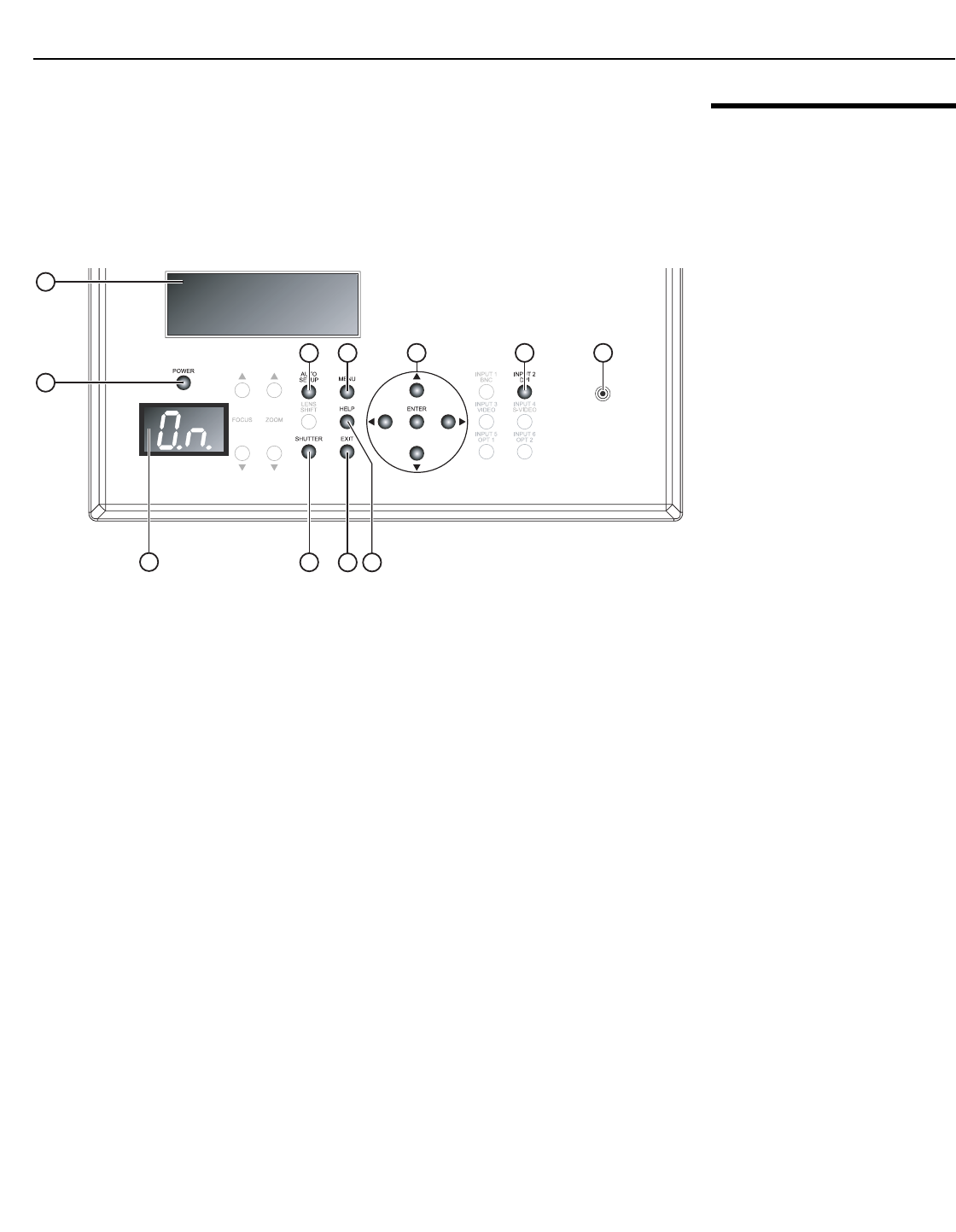

Figure 2-3 shows the SC-1 control panel.
Figure 2-3. SC-1 Control Panel
1. LCD STATUS DISPLAY
Full status and error messages appear in this window.
2. POWER BUTTON
Not used. Use the DHD Controller to turn the projector on or off.
3. LED STATUS/ERROR CODE WINDOW
The LED status window displays an active pattern of segments to indicate that the
projector is changing its state from powered down to powered up. The message “On”
appears here when the projector has completed its initialization and is ready for use.
During an error condition that prevents normal operation, a two-digit code appears
here to indicate the basic operational state of the projector. Codes are translated in
the LCD Status Display window; for a complete error code list, refer to
Error Codes
on page 98.
4. SHUTTER
Press and hold this button for two seconds to toggle the internal mechanical shutter
blade closed or open. A closed shutter blanks the display (turns it to black). Close the
shutter to mute all display while maintaining access to projector functions. Opening
the shutter restores the image.
5. EXIT
When in the menu structure, the EXIT button brings the menu back one page or
cancels the current function.
6. HELP
Press HELP to display on-screen help text. Press HELP again (or EXIT) to hide it.
Power On OSD On
44.96kHz 59.94Hz
2
1
9 8 7
5
11
3
10
6
4
