Maintenance and Troubleshooting
Runco SC-1 Owner’s Operating Manual 93
PRE
L
IMINAR
Y

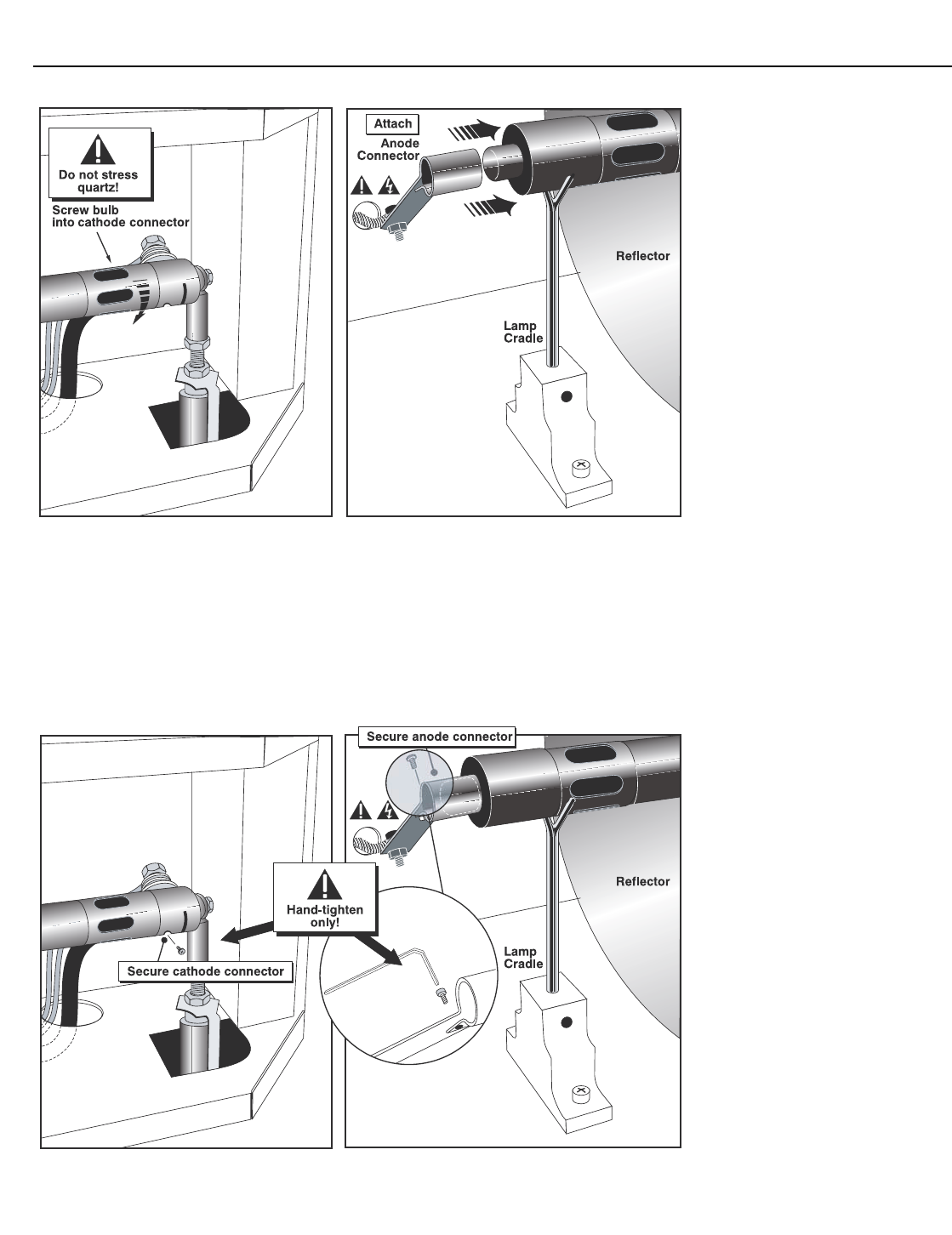

Figure 5-2. Installing A New Lamp
12. Rest the anode (+) end of the lamp on the lamp cradle as shown in Figure 5-2. Then,
slip the positive lamp connector over the bulb end.
13. Tighten the set screws in both negative and positive lamp connectors; see Figure 5-3.
If you accidentally touch the quartz body of the lamp with your bare hands, clean the
surface as described in Maintenance and Cleaning on page 89.
Figure 5-3. Securing Lamp Anode (+) and Cathode (-) Connectors
