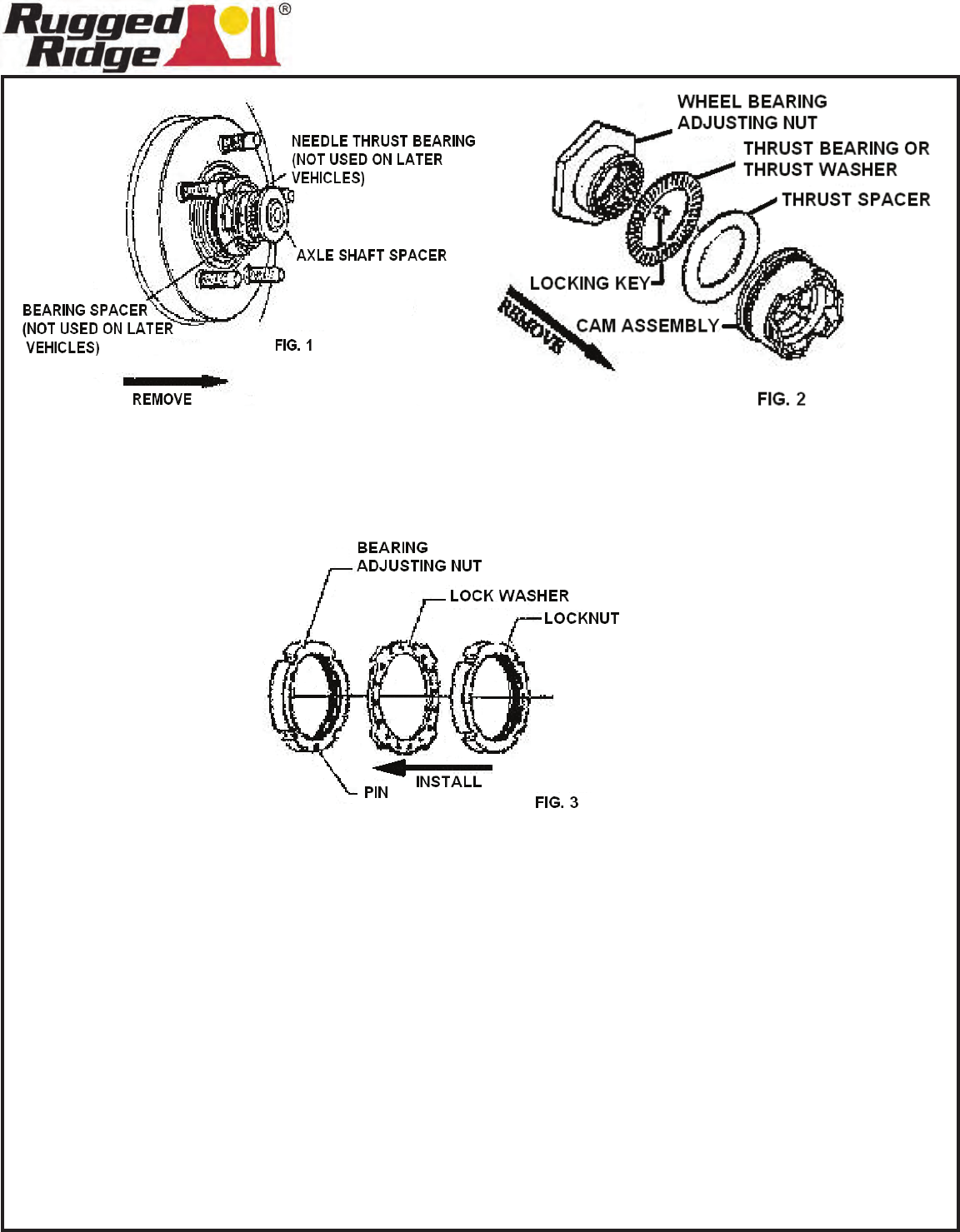

d) Install the Bearing Adjusting Nut (with pin) and torque to 35 ft-lbs. Back of Adjusting
Nut 90 degrees. and re-torque to 16 in-lbs. Install the Lock Washer against the Adjusting
Nut. Be sure one of the holes in the lock Washer lines up with the pin on the bearing
Adjusting Nut. Install the outer Lock Nut and torque to 150 ft-lbs (g. 3).
15003.65
e) Replace the items previously removed at Step 3a, be sure the Retaining Ring is seated
into its groove.
f) Install the Hublock assembly against the hub and rotor assembly.
g) Attach the Tinnerman Clips on the Wheel Studs and press them rmly against the
hublock assembly.
h) Install the wheel and tire and torque the lug nuts to 85-135 ft-lbs.
