User Guide

Wet and Dry Bulb Water Bath

The wick should be changed frequently, the period between changes depending on the surrounding atmosphere.

In wood drying kilns, etc., the wick should be renewed once a week but in clean atmospheres, e.g. offices, it can

be left as long as three weeks. The water must be kept clean and free from impurities.

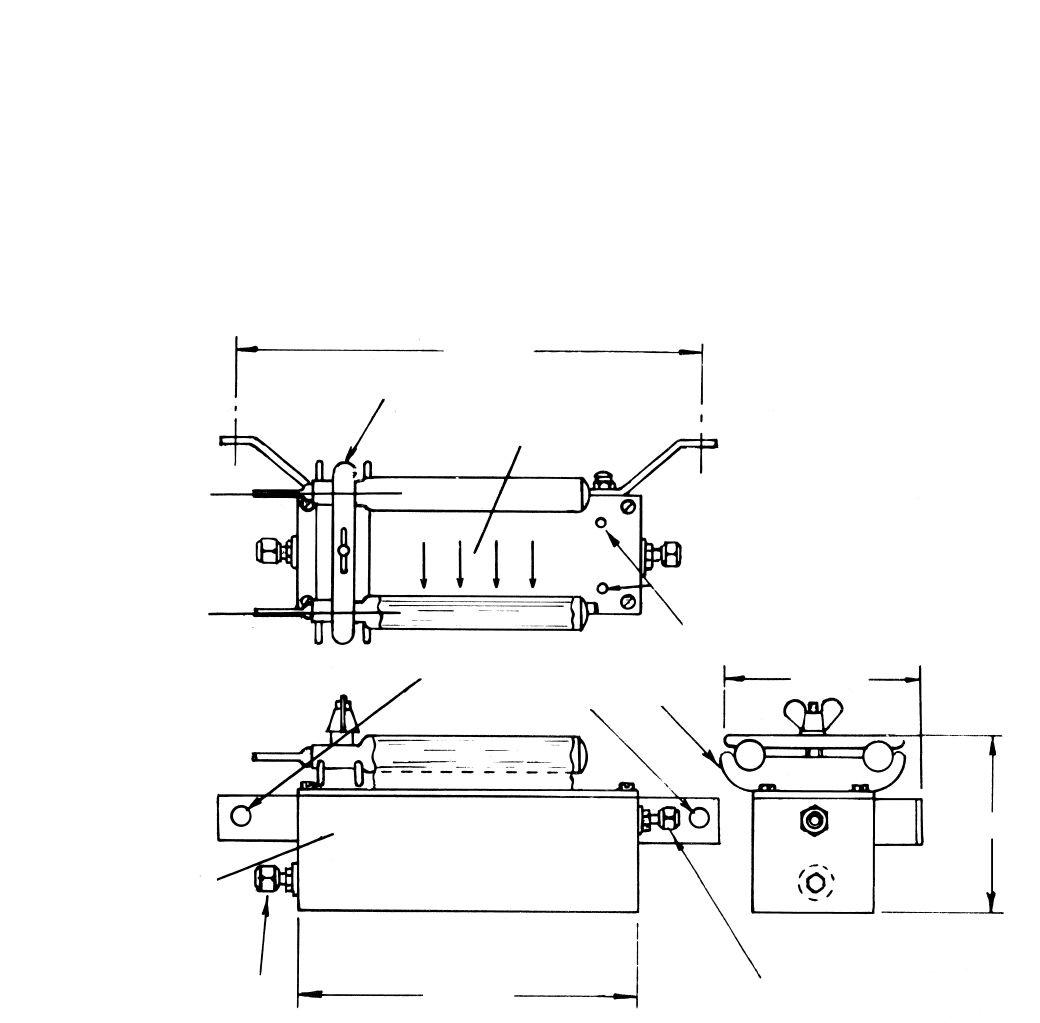

Fig. 10. Wet and Dry Bulb Water Bath

298.5 mm

Bulb clamp

Dry bulb

Wet bulb

with wick covering

Mounting holes

13.5 mm dia.

127 mm

130 mm

Water bath

Inlet union

Note: Water supply maximum pressure 6 metre head.

231.5 mm

Overflow union

Optimum air flow direction

For capillary entry from the

right mount clamp A using

holes B
