Controller Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 61
4. Enter the assignment digit for the current user slot:
“1” activates the Lock Strike relay only default
“2” activates the Auxiliary relay only
“3” activates the Lock Strike and Auxiliary relays
If the assignment code is valid, the Mode indicator stops flashing.
The controller is now waiting for another slot number.
5. Press the # key to move to the next slot or enter a new slot
number.
If you do not wish to continue, press the # key twice and the
controller returns to Normal mode.

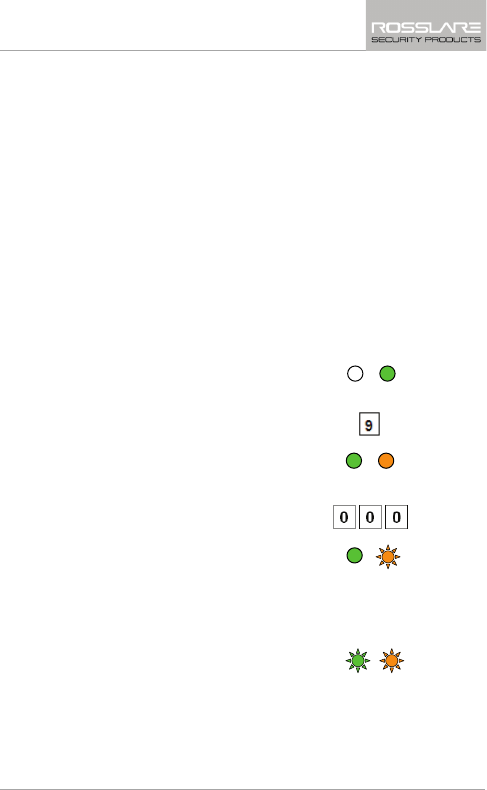

6.9.17 Relay Code Assignment using Search Method
1. Enter Programming mode.
2. Press “9” to enter Menu 9.
The Mode LED turns green and
the Door LED turns orange.
3. Enter 000 for user slot access.
The Door LED flashes orange.
The controller is now waiting for the primary code of the user.
4. Enter the primary code belonging to the user
The Mode LED flashes green.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Orange
Mode/Transmit
Door/Program
Green
Orange
Mode/Transmit
Door/Program
Green
Orange
