Controller Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 59
4. Enter your programming code to
confirm the deletion.
If the programming code is valid, three beeps are heard and the
controller returns to Normal mode.
If the programming code is invalid, a long beep is heard and the
controller returns to Normal mode.
It is recommended that a record be kept of added and deleted
users so that it is easier to keep track of which user slots are
empty and which user slots are not.

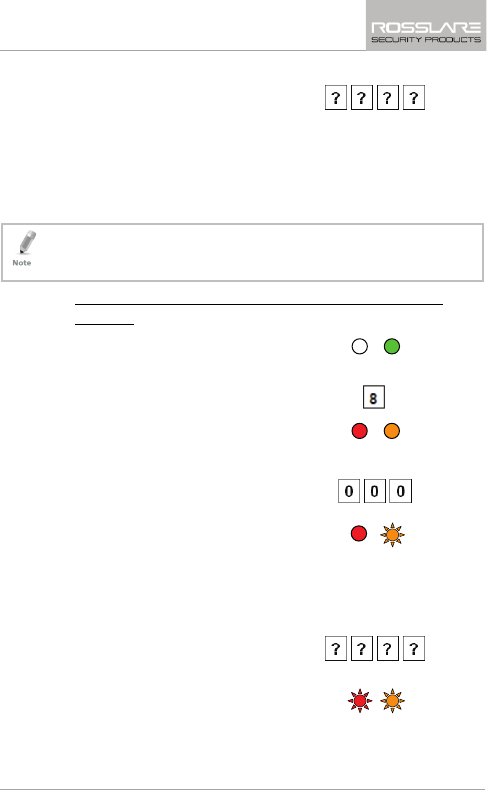

6.9.14.2 Deleting Primary & Secondary Codes using Search
Method
1. Enter Programming mode.
2. Press “8” to enter Menu 8.
The Mode LED turns red and the
Door LED turns orange.
3. Enter 000 as the 3-digit user slot
number.
The Mode LED turns red and the
Door LED flashes orange.
The controller is now waiting for the Primary code of the user you
want to delete.
4. Enter the 4- to 8-digit PIN c
ode of
the Primary code belonging to
the user you want to delete.
The Mode LED flashes red and
the Door LED flashes orange.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Red
Orange
Mode/Transmit
Door/Program
Red
Orange
Mode/Transmit
Door/Program
Red
Orange
