Controller Functionality
58 AYC-Ex5 and AYC-T65 Installation and Programming Manual
If the Primary code entered is not valid, you hear a long beep and
the unit continues to wait for a valid Primary code.
6. Enter the 4- to 8-digit code to be used as the Secondary code.
If the Secondary code is valid, the controller beeps three times
and returns to Normal mode.
If the Secondary code is invalid, the controller sounds a long
beep, and the unit continues to wait for a valid Secondary code
to be entered.
6.9.14 55BDeleting Primary and Secondary Codes
There are two methods to delete Primary and Secondary codes: the
Standard Method and the Code Search Method.
When deleting a user slot, both the Primary code and the Secondary
code are erased.

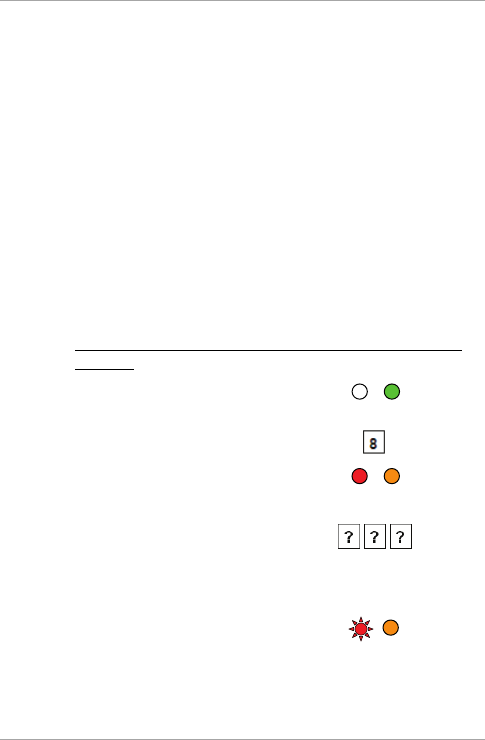

6.9.14.1 Deleting Primary & Secondary Codes using Standard
Method
1. Enter Programming mode.
2. Press “8” to enter Menu 8.
The Mode LED turns red and the
Door LED turns orange.
3. Enter the 3-digit User Slot code
you wish to delete.
The Mode LED flashes red
indicating the controller is waiting
for the Programming code to
confirm the deletion.
If the user slot is empty, you hear
a long beep and the unit returns
to Normal mode.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Red
Orange
Mode/Transmit
Door/Program
Red
Orange
