Controller Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 57

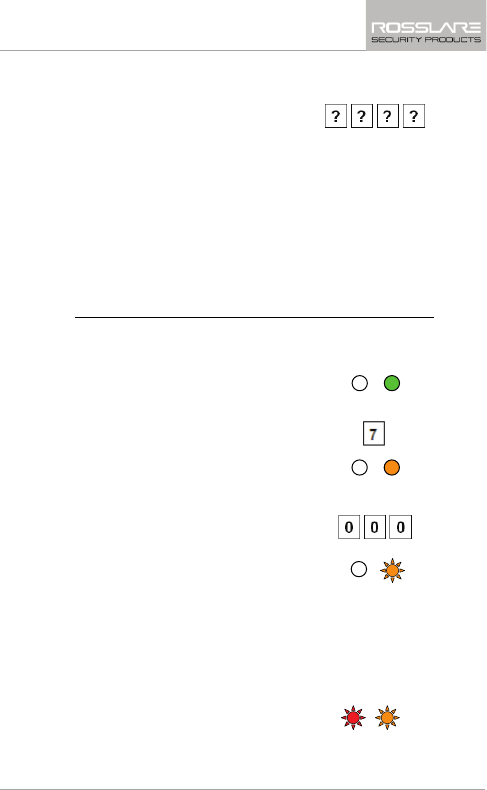

4. Enter the 4- to 8-digit PIN code
that you want to assign as the
Primary or Secondary code for
this slot number.
If the PIN that is entered is valid, the Mode LED stops
flashing and
then the controller is ready for you to enter the next 3-digit slot
number (refer to Step 2) that you want to assign a code to.
5. Press the “#” key to move to the next slot number.
If you do not wish to continue enrolling codes, press the “#” key
twice and the controller returns to Normal mode.
6.9.13.5 Enrolling Secondary Codes using Search Method
The Code Search feature enables you to quickly enroll a Secondary
code to a user who already has a Primary code.
1. Enter Programming mode.
2. Press “7” to enter Menu 7.
The Door LED turns orange.
3. Enter 000 as the 3-digit user slot
number.
The Door LED flashes orange.
The controller is now waiting for the Primary code of the user to
whom you want to add a Secondary code.
4. Enter the 4- to 8-digit PIN code of the Primary code belonging to
the user to whom you want to add a Secondary code.
5. The Mode LED flashes red.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Orange
Mode/Transmit
Door/Program
Orange
Mode/Transmit
Door/Program
Red
Orange
