Controller Functionality
56 AYC-Ex5 and AYC-T65 Installation and Programming Manual

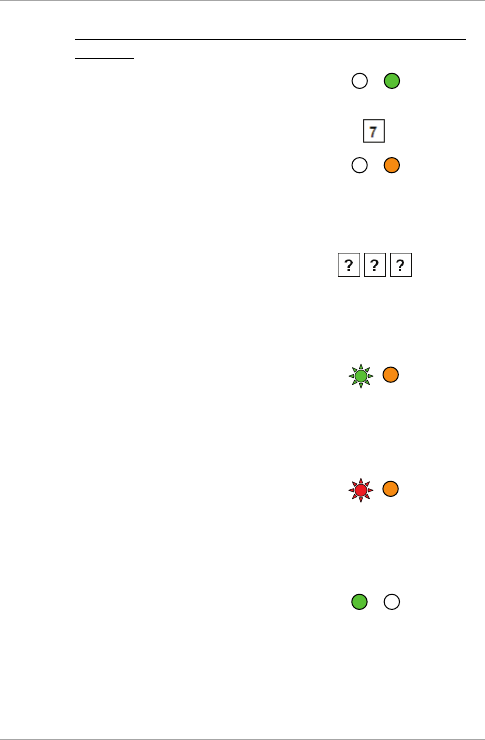

6.9.13.4 Enrolling Primary & Secondary Codes using Standard
Method
1. Enter Programming mode.
2. Press “7” to enter Menu 7.
The Door LED turns orange.
3. Enter the 3-digit user slot
number
between 001and 500 that you
wish to enroll a Primary or
Secondary code to.
For example, User Slot 003
represents User #3.
If the selected slot has no Primary
code, the Mode LED flashes
green, indicating that the
controller is ready to accept a
Primary code.
If the selected slot already has a
Primary code but no Secondary
code, the Mode LED flashes red,
indicating that the controller is
ready to accept a Secondary
code.
If the selected slot already has a
Primary and Secondary code, you
hear a long beep and the
controller returns to Normal
mode.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Orange
Mode/Transmit
Door/Program
Green
Orange
Mode/Transmit
Door/Program
Red
Orange
Mode/Transmit
Door/Program
Green
