User's Manual
Table Of Contents
- 1. General Information
- 2. Technical Specifications
- 3. Installation
- 4. Wiring Instructions
- 5. Reader Functionality
- 5.1 Transmit Mode
- 5.2 Programming the AYC-Ex5 and AYC-T65
- 5.2.1 Entering Programming Mode
- 5.2.2 Exiting Programming Mode
- 5.2.3 Selecting Keypad Transmission Format
- 5.2.3.1 Keypad Transmission Format Option Number
- 5.2.3.2 Option 1: Single Key, 6-Bit Wiegand (Rosslare Format)
- 5.2.3.3 Option 2: Single Key, 6-Bit Wiegand Nibble and Parities
- 5.2.3.4 Option 3: Single Key, 8-Bit Wiegand Nibbles Complemented
- 5.2.3.5 Option 4: 4 Keys Binary + Facility Code, Wiegand 26-Bit
- 5.2.3.6 Option 5: 1 to 5 Keys + Facility Code, Wiegand 26-Bit
- 5.2.3.7 Option 6: 6 Keys BCD and Parity Bits, Wiegand 26-Bit
- 5.2.3.8 Option 7: Single Key, 3x4 Matrix Keypad (MD-P64)
- 5.2.3.9 Option 8: 1 to 8 Keys BCD, Clock & Data
- 5.2.4 Selecting Proximity Card Transmission Format
- 5.2.5 Changing the Programming Code
- 5.2.6 Changing the Facility Code
- 5.3 Setting the Backlight
- 6. Controller Functionality
- 6.1 Normal, Secure, and Master Users
- 6.2 Modes of Operation
- 6.3 Auxiliary Input & Output
- 6.4 Door Alarms
- 6.5 Internal Case and Back Tamper
- 6.6 Lockout Feature (Keypad Tamper)
- 6.7 Request to Exit (REX) Function
- 6.8 Secure Application Appurtenances
- 6.9 Programming the AYC-Ex5 and AYC-T65
- 6.9.1 Entering Programming Mode
- 6.9.2 Exiting Programming Mode
- 6.9.3 Changing Lock Strike Code
- 6.9.4 Changing Auxiliary Code
- 6.9.5 Changing the Programming Code
- 6.9.6 Changing the Normal/Secure Code
- 6.9.7 Changing the Normal/Bypass Code and Door Chime Settings
- 6.9.8 Setting Fail Safe/Secure Operation, Tamper Siren and Lock Strike Release Time
- 6.9.9 Defining the Auxiliary Input and Output
- 6.9.10 Detailed Reference Guide
- 6.9.11 Setting the Lockout Feature
- 6.9.12 Setting the Backlight Behavior
- 6.9.13 Enrolling Primary and Secondary Codes
- 6.9.14 Deleting Primary and Secondary Codes
- 6.9.15 Relay Codes Assignment
- 6.9.16 Relay Code Assignment using Standard Method
- 6.9.17 Relay Code Assignment using Search Method
- 6.9.18 PIN Code Length/Factory Default Settings
- 6.9.19 Replacing a Lost Programming Code
- 6.9.20 Exiting Secure Mode if Normal/Secure Code was Lost
- A. Declaration of Conformity
- B. Limited Warranty
Controller Functionality
54 AYC-Ex5 and AYC-T65 Installation and Programming Manual

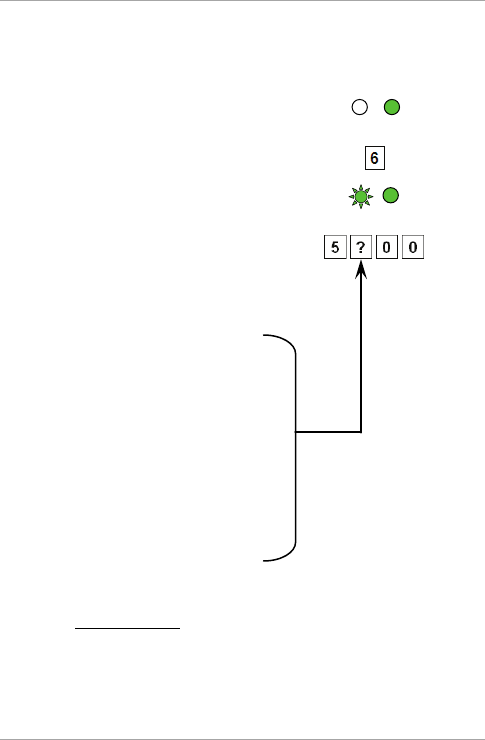

6.9.12 Setting the Backlight Behavior
The controller allows you to define the way the unit’s backlight
works.
1. Enter Programming mode.
2. Press “6” to enter Menu 6.
The Mode LED flashes green.
3. Construct a code using the
following instructions:
The first digit is “5” indicating
the backlight and LED option.
The second key can be 0-3
indicating the type of activity.
Option 0 – Backlight Off
Option 1 – Backlight On
(default)
Option 2 – Backlight Off,
activated on any key press for
ten seconds.
Option 3 – Backlight
Dimmed, backlight activated
on any key press for ten
seconds.
6.9.13 Enrolling Primary and Secondary Codes
6.9.13.1 Primary Codes
Primary codes can only be enrolled to an empty user slot,
meaning a slot where there is no existing Primary code.
Primary codes must be unique, meaning one user’s Primary code
may not be the same as other user’s Primary code.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Green
