Controller Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 53
6.9.11 Setting the Lockout Feature
If the controller is presented with wrong codes several times
consecutively, the unit goes into Lockout mode.
When a lockout occurs, the controller keypad and reader are locked
so no codes can be entered until the set lockout period expires.
During Lockout, Mode LED is off, Door LED flashes red, and the
controller beeps every two seconds
.
The default setting for the Lockout Feature is 4000 (Lockout
Disabled).
Using the lockout feature is highly recommended, especially
when selecting to use short PIN code length (4 or 5 digits).
1. Enter Programming mode.
2. Press “6” to enter Menu 6.
The Mode LED flashes green.

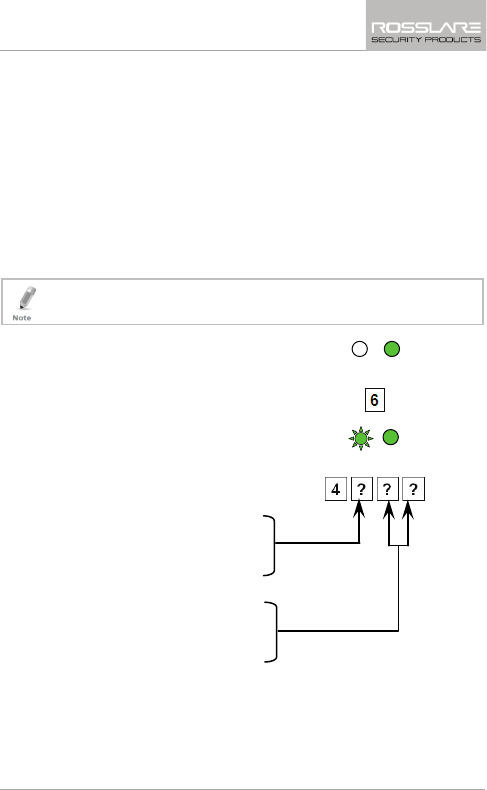

3. Construct a code using the
following instructions:
Set the number of wrong code
attempts, which causes a lockout
between 0 and 9 attempts.
Set the duration of the lockout,
between 00 and 99; the value is
multiplied by ten, resulting in 0
to
990 seconds.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Green
