Controller Functionality
46 AYC-Ex5 and AYC-T65 Installation and Programming Manual
The system returns to Normal
mode.
You hear three beeps.
The Door LED turns off and the
Mode LED turns green.
The default value is 0004, which corresponds to Fail Secure
operation, no siren, and 4-seconds Lock Strike release time.

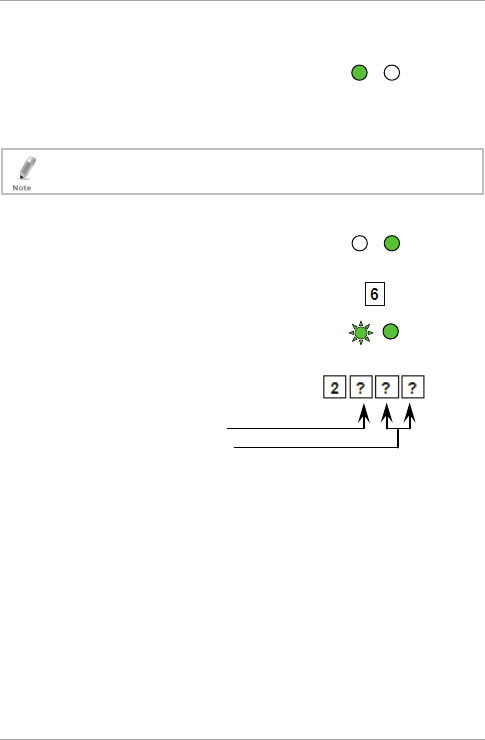

6.9.9 Defining the Auxiliary Input and Output
1. Enter Programming mode.
2. Press “6” to enter Menu 6.
The Mode LED flashes green.
3. Construct a code using the
following instructions:
Auxiliary mode
Auxiliary setting
Auxiliary mode
In addition to the Lock Strike Relay and Lock Strike REX, the
unit features an Auxiliary Input. The Auxiliary mode defines
the function of the Auxiliary Input.
Each of the Auxiliary modes has a two-digit setting that
affects how the Auxiliary mode functions.
Auxiliary settings
The second digit defines the Auxiliary Input function while
the third and fourth digits either may have no meaning or
may define delay times for door monitor functions (Table 5).
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Green
