Controller Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 45
The system returns to Normal
mode.
You hear three beeps.
The Door LED turns off and the
Mode LED turns green.
6.9.8 Setting Fail Safe/Secure Operation, Tamper Siren
and Lock Strike Release Time

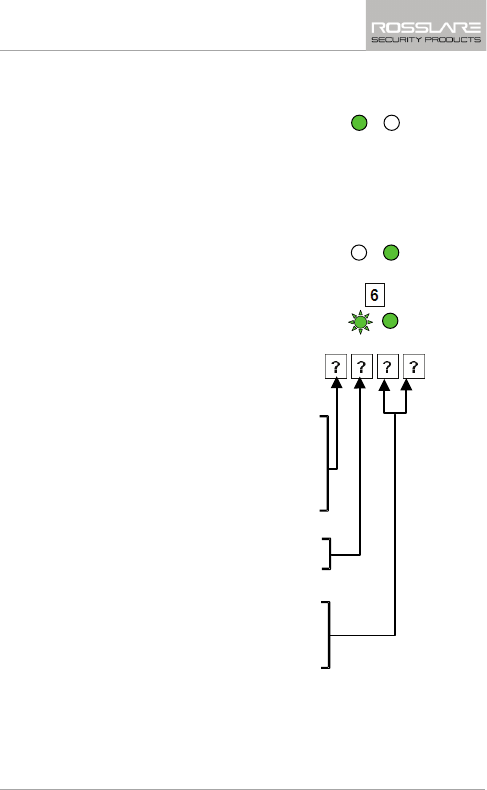

1. Enter Programming mode.
2. Press “6” to enter Menu 6.
The Mode LED flashes green.
3. Construct a code using the
following instructions:
First Digit
For Fail Secure Operation, the
first digit should be “0”.
For Fail Safe Operation the
first digit should be “1”.
Second Digit
Siren Time in minutes (1-9, 0-
disabled)
Third and Fourth Digits
Enter the number of seconds
(from 1 to 99) that you want
the Lock Strike to be
released.
For example, 0312 means a Fail Secure Operation consisting of a
3-minute siren and a 12-second Lock Strike release time.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Green
