Controller Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 37
2. Press the “#” key to confirm the mode change.
Mode LED turns green.

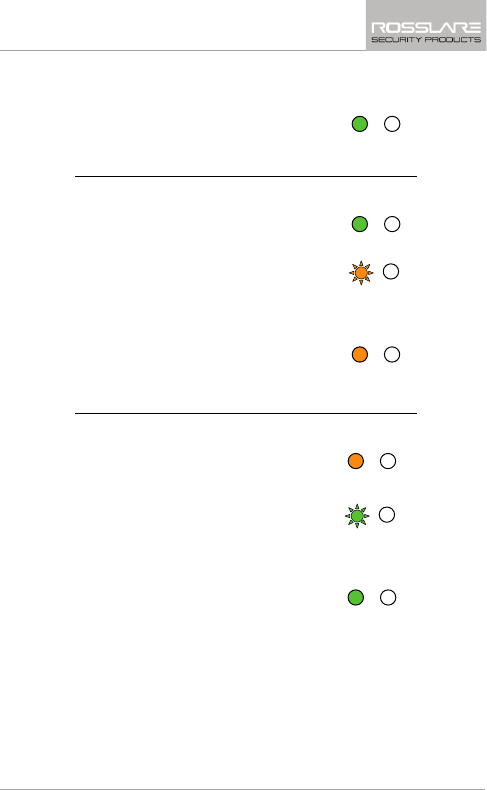

6.2.4.3 Changing from Normal Mode to Bypass Mode
See Section 6.9.7 to create/modify the Normal/Bypass code.
1. Enter the Normal/Secure code.
The Mode LED flashes orange.
2. Press the “#” key to confirm the mode change.
Mode LED turns orange.
6.2.4.4 Changing from Bypass Mode to Normal Mode
See Section 6.9.7 to create/modify the Normal/Bypass code.
1. Enter the Normal/Secure code.
The Mode LED flashes green.
2. Press the “#” key to confirm the mode change.
Mode LED turns green.
6.3 Auxiliary Input & Output
For optimum usability in different applications, the controller’s
auxiliary input and output can be configured in ten different modes of
operation.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Orange
Mode/Transmit
Door/Program
Orange
Mode/Transmit
Door/Program
Orange
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
