Reader Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 33
5.3.1 Return to Factory Default Settings
You must be very careful before using this command! This
erases the entire memory and return all codes to their factory
default setting.

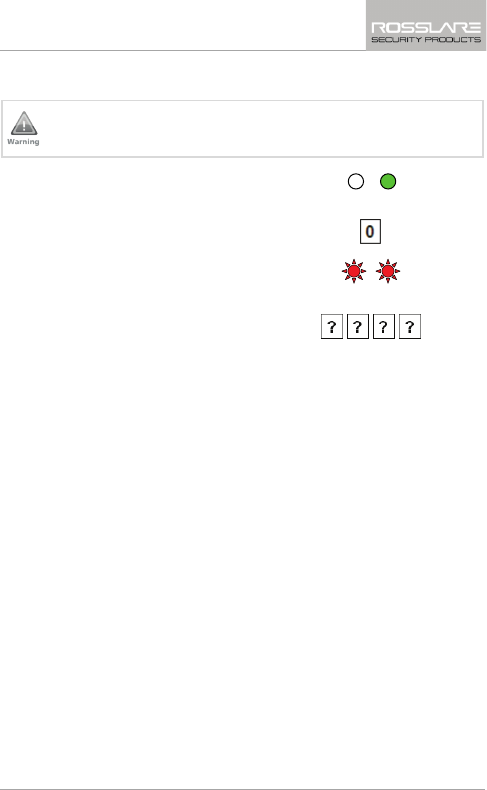

1. Enter Programming mode.
2. Press “0” to enter Menu 0.
The Transmit and Program LEDs
flash red.
3. Enter your 4-digit programming
code.
If the Programming code is valid, all memory is erased. You hear
three beeps and the controller returns to Normal mode.
If the Programming code is invalid, you hear a long beep and the
controller returns
to Normal mode without erasing the memory of
the controller.
5.3.2 Replacing a Lost Programming Code
In the event that the Programming code is forgotten, the AYC-Ex5 or
AYC-T65 can be reprogrammed in the field using the following
instructions:
1. Remove power from the reader.
2. Activate tamper by removing the reader from the wall or
removing the reader's case.
3. Apply power to the reader.
4. You now have 10 seconds to enter Programming mode using the
factory default Programming code 1234.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Red
Red
