Reader Functionality
AYC-Ex5 and AYC-T65 Installation and Programming Manual 31

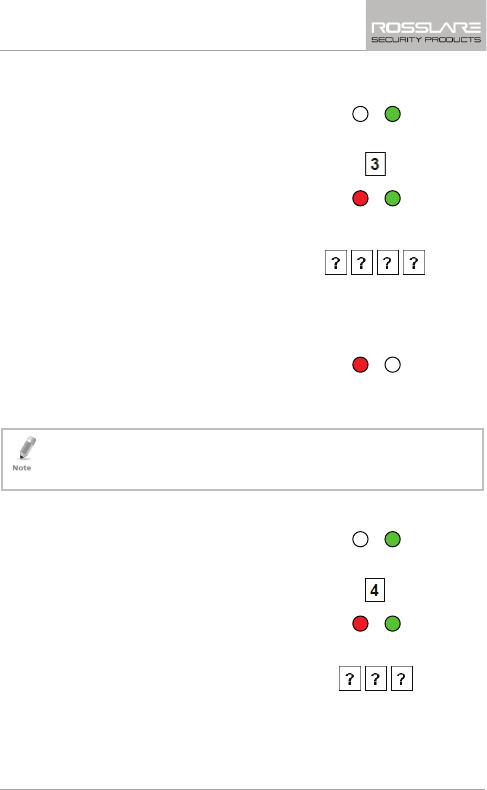

5.2.5 Changing the Programming Code
1. Enter Programming mode.
2. Press “3” to enter Menu 3.
The Transmit LED turns red.
3. Enter the new 4-digit code you
wish to set as the Programming
code.
The system returns to Transmit mode.
You hear three beeps.
The Program LED turns off
and the Transmit LED turns
red.
• The Programming code cannot be erased, meaning the code 0000
is invalid and does not erase the Programming code.
•
The factory default 4-digit Programming code is 1234.
5.2.6 Changing the Facility Code
1. Enter Programming mode.
2. Press “4” to enter Menu 4.
The Transmit LED turns red.
3. Enter the new 3-digit code you
wish to set as the Facility code.
The system returns to Transmit
mode.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Red
Green
Mode/Transmit
Door/Program
Red
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Red
Green
