User's Manual
Table Of Contents
- 1. General Information
- 2. Technical Specifications
- 3. Installation
- 4. Wiring Instructions
- 5. Reader Functionality
- 5.1 Transmit Mode
- 5.2 Programming the AYC-Ex5 and AYC-T65
- 5.2.1 Entering Programming Mode
- 5.2.2 Exiting Programming Mode
- 5.2.3 Selecting Keypad Transmission Format
- 5.2.3.1 Keypad Transmission Format Option Number
- 5.2.3.2 Option 1: Single Key, 6-Bit Wiegand (Rosslare Format)
- 5.2.3.3 Option 2: Single Key, 6-Bit Wiegand Nibble and Parities
- 5.2.3.4 Option 3: Single Key, 8-Bit Wiegand Nibbles Complemented
- 5.2.3.5 Option 4: 4 Keys Binary + Facility Code, Wiegand 26-Bit
- 5.2.3.6 Option 5: 1 to 5 Keys + Facility Code, Wiegand 26-Bit
- 5.2.3.7 Option 6: 6 Keys BCD and Parity Bits, Wiegand 26-Bit
- 5.2.3.8 Option 7: Single Key, 3x4 Matrix Keypad (MD-P64)
- 5.2.3.9 Option 8: 1 to 8 Keys BCD, Clock & Data
- 5.2.4 Selecting Proximity Card Transmission Format
- 5.2.5 Changing the Programming Code
- 5.2.6 Changing the Facility Code
- 5.3 Setting the Backlight
- 6. Controller Functionality
- 6.1 Normal, Secure, and Master Users
- 6.2 Modes of Operation
- 6.3 Auxiliary Input & Output
- 6.4 Door Alarms
- 6.5 Internal Case and Back Tamper
- 6.6 Lockout Feature (Keypad Tamper)
- 6.7 Request to Exit (REX) Function
- 6.8 Secure Application Appurtenances
- 6.9 Programming the AYC-Ex5 and AYC-T65
- 6.9.1 Entering Programming Mode
- 6.9.2 Exiting Programming Mode
- 6.9.3 Changing Lock Strike Code
- 6.9.4 Changing Auxiliary Code
- 6.9.5 Changing the Programming Code
- 6.9.6 Changing the Normal/Secure Code
- 6.9.7 Changing the Normal/Bypass Code and Door Chime Settings
- 6.9.8 Setting Fail Safe/Secure Operation, Tamper Siren and Lock Strike Release Time
- 6.9.9 Defining the Auxiliary Input and Output
- 6.9.10 Detailed Reference Guide
- 6.9.11 Setting the Lockout Feature
- 6.9.12 Setting the Backlight Behavior
- 6.9.13 Enrolling Primary and Secondary Codes
- 6.9.14 Deleting Primary and Secondary Codes
- 6.9.15 Relay Codes Assignment
- 6.9.16 Relay Code Assignment using Standard Method
- 6.9.17 Relay Code Assignment using Search Method
- 6.9.18 PIN Code Length/Factory Default Settings
- 6.9.19 Replacing a Lost Programming Code
- 6.9.20 Exiting Secure Mode if Normal/Secure Code was Lost
- A. Declaration of Conformity
- B. Limited Warranty
Reader Functionality
22 AYC-Ex5 and AYC-T65 Installation and Programming Manual

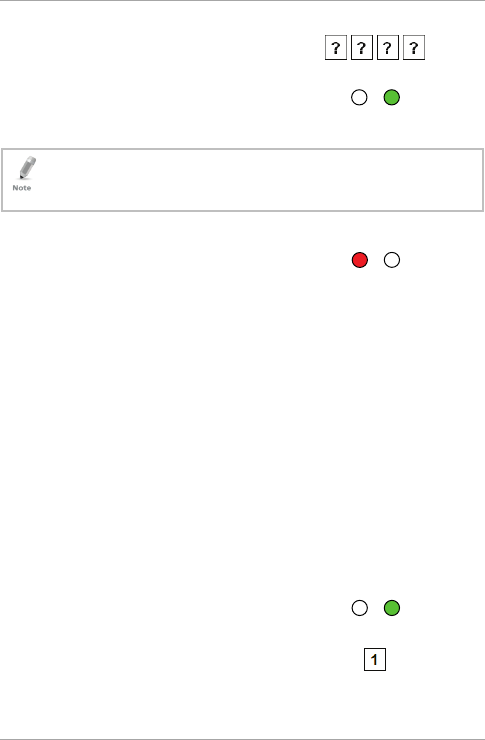

2. Enter your 4-digit Programming
code.
If the Programming code is valid,
the door LED turns green and the
unit is in Programming mode.
• The factory 4-digit Programming code is 1234.
• If a Programming code is not entered within 30 seconds, the unit
returns to Transmit mode.
5.2.2 Exiting Programming Mode
1. Press # to exit the Programming
mode at any time.
You hear a beep.
The Program LED turns off and the Transmit LED turns red.
This indicates that the unit has returned to Transmit mode.
Wrong entries may reset the reader back to Transmit mode.
While in Programming mode, if no key is pressed for 30 seconds,
the unit exits Programming mode and returns to Transmit mode.
5.2.3 Selecting Keypad Transmission Format
The AYC-Ex5 and AYC-T65 has eight different keypad transmission
formats.
See Table 3 in Section 5.2.3.1 for more information on keypad
transmission formats.
To select the appropriate keypad transmission format:
1. Enter Programming mode.
2. Press “1” to enter Menu 1.
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Red
Mode/Transmit
Door/Program
Green
