AYC-Qx4 family manual Page 10
3. Installation
3.1 Mounting the AYC- F/G/M60
Before starting, select the location to mount the AYC- F/G/M60.
This location should be at shoulder height. Drill holes into the back
of the unit according to how you want to mount the AYC-
F/G/M60. For US Gang Box installation, there are two-hole
indicators on the back of the metal cover specifically aligned for
the US Gang Box (A, in diagram below). For a four screw custom
installation, there are four indicators on the back (B in diagram
below). [This is Q-box need F/G/M boxes drawings]

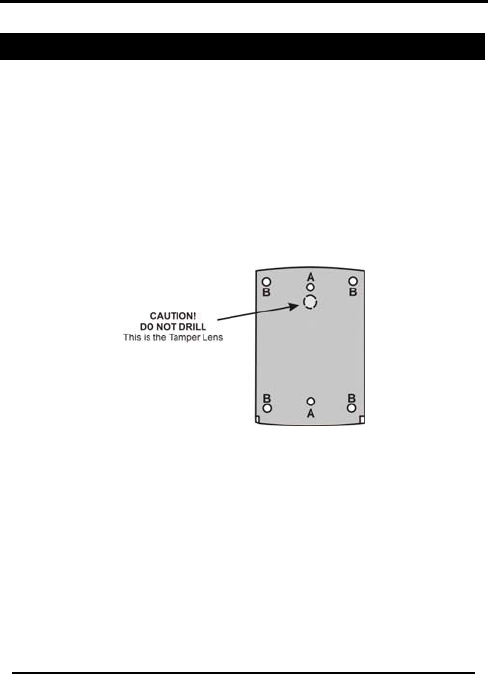

Figure 1 Drilling mounting holes
When the unit is used a reader, route the interface cable from the
AYC- F/G/M60 to the Controller. When the unit is used as a
secured controller, route the interface cable from the AYC-
F/G/M60 to Rosslares’ secure application appurtenance.
A linear type power supply is recommended, when using the unit
as a controller.
Screw the AYC- F/G/M60 back cover to its mounting location.
Return the AYC- F/G/M60 front cover to the mounted back plate.
Secure the front cover by using the supplied security screw in the
controllers Installation Kit. An L-Shaped tool is provided for use
when tightening the security screw.
