Relay Codes Assignment
When a primary code is enrolled for any user, the user is
authorized to activate the Lock Strike relay. However, different
user codes may be set to operate the auxiliary relay instead or
operate both the Lock strike and auxiliary relay. Assignment of
such codes is achievable for any valid user code entered in the
controller.
There are two methods to assign relay codes to users: a standard
method and a search method.
Relay Code Assignment using Standard Method
AYC-Qx4 family manual
Page 53

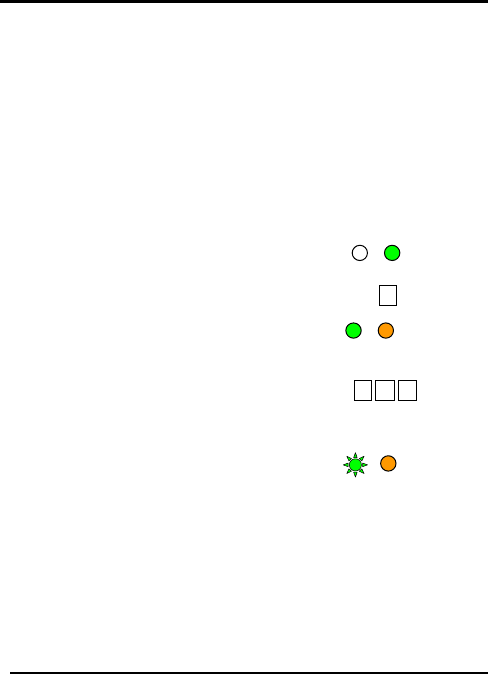

1) Enter the programming
mode.
Mode/Transmit Door/Program
Green
2) Depress 9 to enter Menu 9.
9
• The Mode LED will turn
green.
Mode/Transmit
Door/Program
Green Oran
g
e
• The Door LED will turn orange.
3) Enter the 3-digit user slot for code
assignment.
? ? ?
• The Mode LED will flash green.
4) Enter the assignment digit for the current user slot:
• 1 will activate the Lock
Strike relay only deafult
Mode/Transmit
Mode/Transmit
Door/Program
Door/Program
Green
Orange
• 2 will activate the
Auxiliary relay only
• 3 will activate the Lock Strike and Auxiliary relays.
If the assignment code is valid, the Mode indicator will stop
flashing.
The controller is now waiting for another slot number. Depress the
# key to move to the next slot or enter a new slot number. If you
do not wish to continue, depress the # key twice and the
controller will return to its normal mode.
