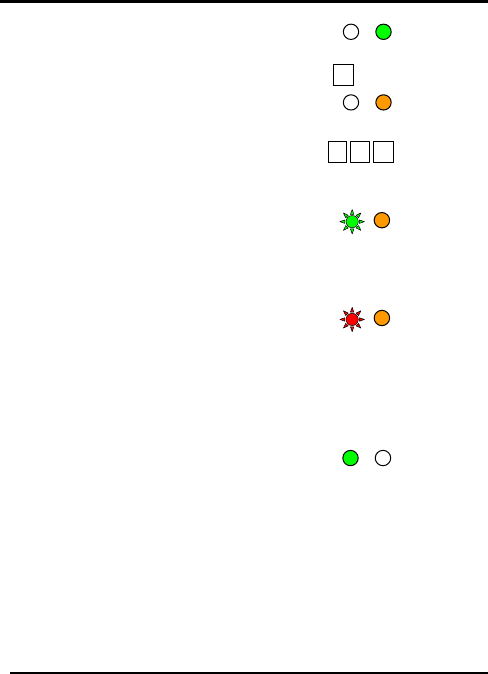

1) Enter the Programming
Mode.
AYC-Qx4 family manual
Page 49
2) Press 7 to enter Menu 7.
• The Door LED will turn
orange
er the 3-di3) Ent git User Slot number
between 001 and 500 that you wish to
enroll a Primary or Secondary code to. For example, User Slot
003 represents User #3.
• If the selected slot has no
Primary Code, the Mode
LED will flash green,
indicating that the controller is ready to accept a Primary
Code.
• If the selected slot
already has a Primary
Code but no Secondary
Code, the Mode LED will flash red, indicating that the
controller is ready to accept a Secondary Code.
• If the selected slot already has a Primary and Secondary
Code, you will hear a long beep and the controller will
return to Normal Mode.
er the PIN Code you wish4) Ent
to assign as the Primary or
Secondary Code for this slot
number.
If the code entered is valid the Mode LED will stop flashing and
then the controller is ready for you to enter the next 3-digit slot
number (refer to step 2) that you want to assign a code to, or
press the “#” key to move to the next slot number. If you do not
wish to continue enrolling codes, press the “#” key twice and the
controller will return to Normal mode.
7
??
Mode/Transmit
Door/Program
Oran
g
e
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
Orange
Mode/Transmit
Door/Program
Red
Orange
Mode/Transmit
Door/Program
Green
