Changing the Normal / Bypass Code and Door Chime Settings
AYC-Qx4 family manual Page 38

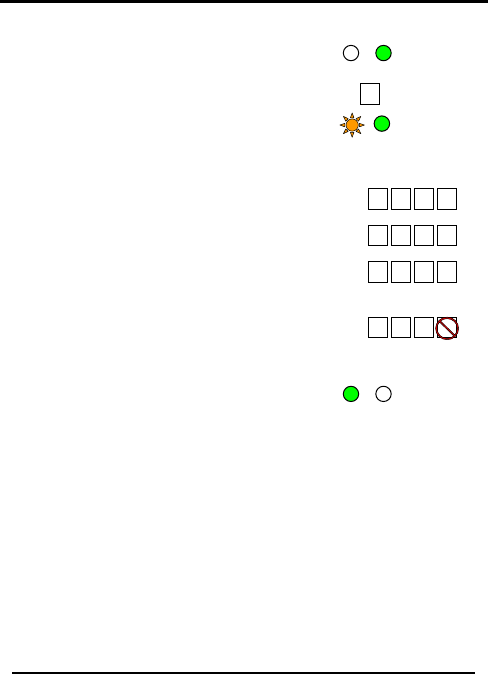

1) Enter Programming mode.
2) Press “5” to enter Menu 5
• The Mode LED will flash
orange.
3) Hereafter, are four different
ways to program the normal / bypass code and door chime.
a. Disable both Bypass Code and the
door chime. Enter the code 0000.
b. Disable Bypass Code and enable the
door chime. Enter the code 0001.
c. Enable Bypass Code and disable the
door chime. Enter any code ending
with 0.
d. Enable Bypass Code and enable the
door chime. Enter a code not ending
with 0.
4) System returns to its normal mode.
• You will hear three
beeps.
• The Door LED will turn off.
• The Mode LED will turn green.
5
0 0 0 0
0 0 0 1
? ? ? 0
? ? ? 0
Mode/Transmit
Door/Program
Orange
Green
Mode/Transmit
Door/Program
Green
Mode/Transmit
Door/Program
Green
