AYC-Qx4 family manual
Page 37

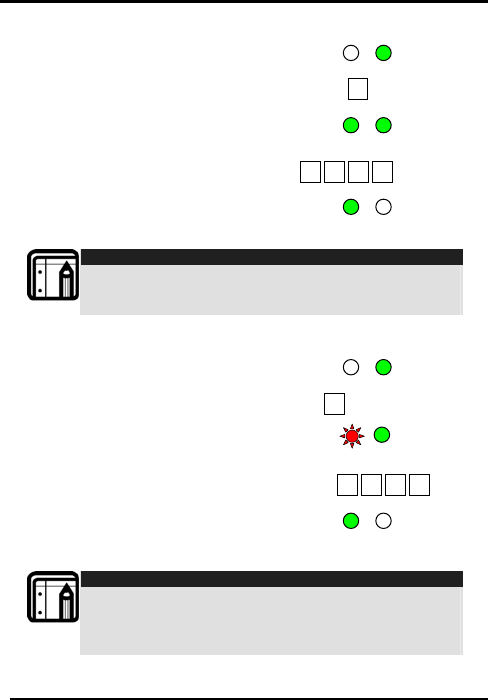

Changing the Programming Code
1) Enter Programming mode.
2) Press “3” to enter Menu 3.
• The Mode LED will turn
green.
3) Enter the new code you wish to
set as Programming Code
4) System returns to Normal
om de.
• You will hear three beeps.
Note:
• Programming Code cannot be erased, i.e. the code 0000
is not valid and will not erase the Programming Code.
• The factory four digit programming code is 1234.
Changing the Normal / Secure Code
1) Enter Programming mode.
2) resP s “4” to enter Menu 4
• The Mode LED will flash
red.
3) Enter the new code you
wish to set as Normal / Secure Code
4) System returns to Normal
om de
• You will hear three beeps
Note:
• Code 0000 will erase the Normal / Secure Code.
• This code is disabled in case the Auxiliary Input is set to
toggle between Normal and Secure access modes.
• Default Normal/Secure code is 3838
3
????
