User's Manual

Page 6
06/04
Installation

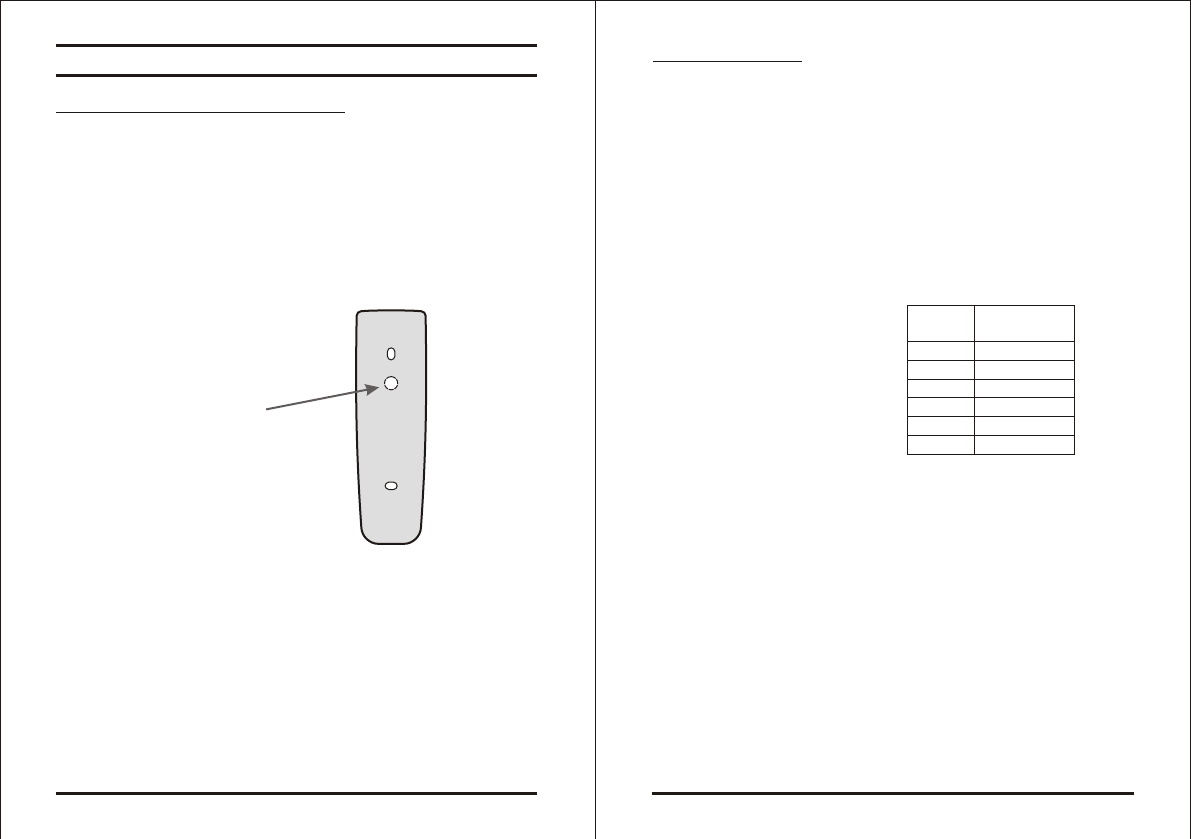

Mounting the AYC-G64 Controller
1) Before starting, select the location to mount the AYC-G64 reader.
This location should be at shoulder height.
2) For wall mounting use the mounting template as a guide to drill
the mounting and cable holes in the wall. For US Gang Box
installation there are two hole indicators on the back of the metal
cover specifically aligned for the US Gang Box. (Shown marked
as "A" in diagram below).
3) Route the interface cable from the Reader to the Controller. A
linear type power supply is recommended.
4) Screw the AYC-G64 back cover to its mounting location.
5) Return the front cover of the AYC-G64 to the mounted back plate.
6) Secure the front cover by using the supplied security screw in the
controllers Installation Kit. An L-Shaped tool is provided for use
when tightening the security screw.
AYC-G64
Page 7
06/04
Wiring the AYC-G64
The reader is supplied with a 16-inch pigtail, having a 6-conductor
cable. To connect the reader to the Controller, perform the following
steps.
1) Prepare the reader cable by cutting the cable jacket back 1
inches and strip the wire inch. Prepare the controller cable by
cutting the cable jacket back 1 inches and strip the wire
inch.
2) Splice the reader pigtail wires to the corresponding controller
wires and cover each connection.
Table shows how you
should wire the Reader
to the controller.
3) If the tamper output is being utilized, connect the purple wire to
the correct input on the controller.
4) Trim and cover all conductors that are not used.
AYC-G64
Red
Black
White
Green
Brown
Purple
+V DC
Ground
Data 1 / Clock
Data 0 / Data
LED Control
Tamper
COLOR OUTPUT
1
4
/
1
2
/
1
4
/
1
2
/
Tamper
Lens
A
A
