Owners Manual Digital Piano FP-3

7
Panel Descriptions
Rear Panel

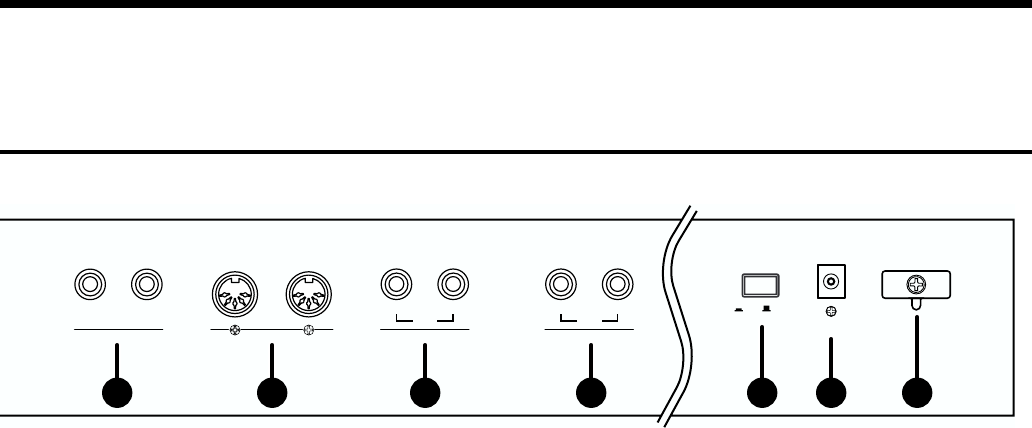

1 Pedal Jacks
Accepts connection of the supplied pedal , or other suitable
pedals (p. 10).
2 MIDI Connectors
You can connect external MIDI devices to the FP-3 and
exchange performance data among them (p. 42).
3 Line In Jacks
Provide input of the audio signals. Used for connecting
audio equipment and other such devices (p. 8).
4 Line Out Jacks
Provide output of the audio signals. Also used for connecting
audio equipment and other such devices (p. 8).
These allow you to play sounds from the FP-3 through other
audio devices.
5 [Power] Switch
This switch turns the unit on/off (p. 10).
6 DC In Jack
Connect the supplied AC adaptor here (p. 8).
7 Cord Hook
Use this to fix in place the cord from the supplied AC adaptor
(p. 8).
MIDI
Out In
Damper Soft
Pedal Line In
RL
(
Mono
)
Stereo
Line Out
RL
(
Mono
)
Stereo
DC In 9V
Power
On
Off
1 2 3 4 5 6 7
