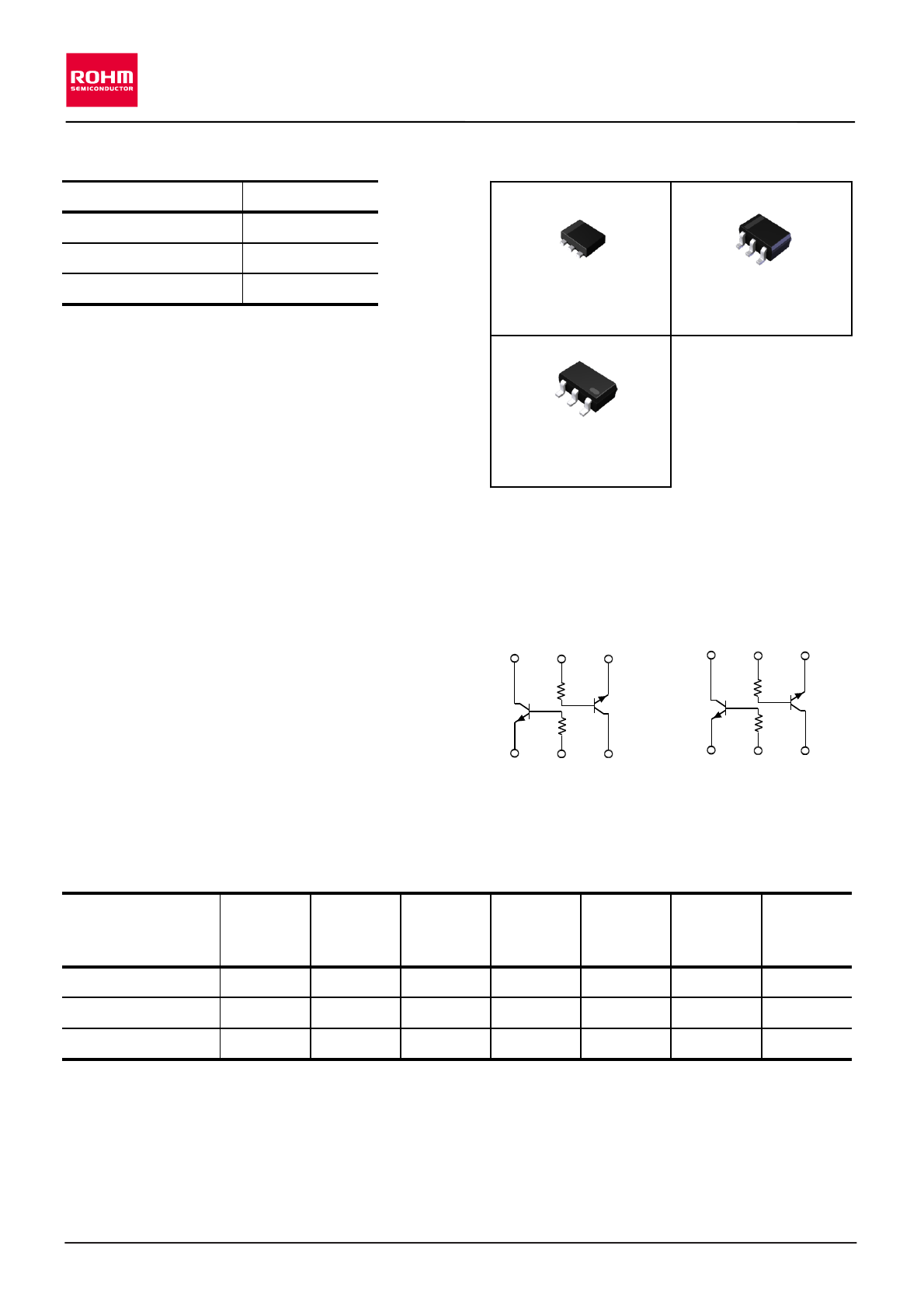

EMH4 / UMH4N / IMH4A

NPN 100mA 50V Complex Digital Transistors (Bias Resistor Built-in Transistors)

Outline

Features

1) Built-In Biasing Resistors.

2) Two DTC114T chips in one package.

3) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit).

4) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing

Inner circuit

of the input. They also have the advantage of

completely eliminating parasitic effects.

5) Only the on/off conditions need to be set for

operation, making the circuit design easy.

6) Lead Free/RoHS Compliant.

Application

Inverter circuit, Interface circuit, Driver circuit

Packaging specifications

3,000

UMH4N

UMT6

2021

180

SMT6

2928

T108

180

8,000

Tape width

(mm)

Basic

ordering

unit (pcs)

Marking

Reel size

(mm)

EMH4

EMT6

1616

T2R

180

3,000

IMH4A

Part No.

Package

size

(mm)

Taping

code

10kW

Parameter

Tr1 and Tr2

CEO

50V

C(MAX.)

100mA

EMT6

UMT6

SMT6

EMH4

(SC-107C)

IMH4A

SOT-457 (SC-74)

UMH4N

SOT-353 (SC-88)

EMH4 / UMH4N

IMH4A

Collector

(6)

(2)

Base

(1)

Emitter

(3)

Collector

Base

(5)

Emitter

(4)

Collector

(4)

(2)

Base

(3)

Emitter

(1)

Collector

Base

(5)

Emitter

(6)

(5)

(4)

(1)

(2)

(3)

(4)

(5)

(6)

(3)

(2)

(1)

(6)

(5)

(4)

(1)

(2)

(3)

1/6

2012.06 - Rev.B
