Instrument Functions
R&S
®
NGL200
59User Manual 1178.8736.02 ─ 02.01
6.5 User Button Key
The R&S NGL200 allows you to configure the user key action for one of the following
functions:
●
Screenshot image from instrument
●
Instrument trigger function
●
Toggle data logging function
●
Reset sample count (see index 4 of Figure 5-5)
●
Toggle touchscreen function
1. Press [Settings] key.
The R&S NGL200 displays the main menu window.
2. Select the "Device" menu tab to configure user key.
The R&S NGL200 displays the device menu.
3. Select "User Button" from the menu.
The R&S NGL200 displays the "User Button" dialog.
Figure 6-21: User button action
4. Select the "User Button Action" to configure the user key action.

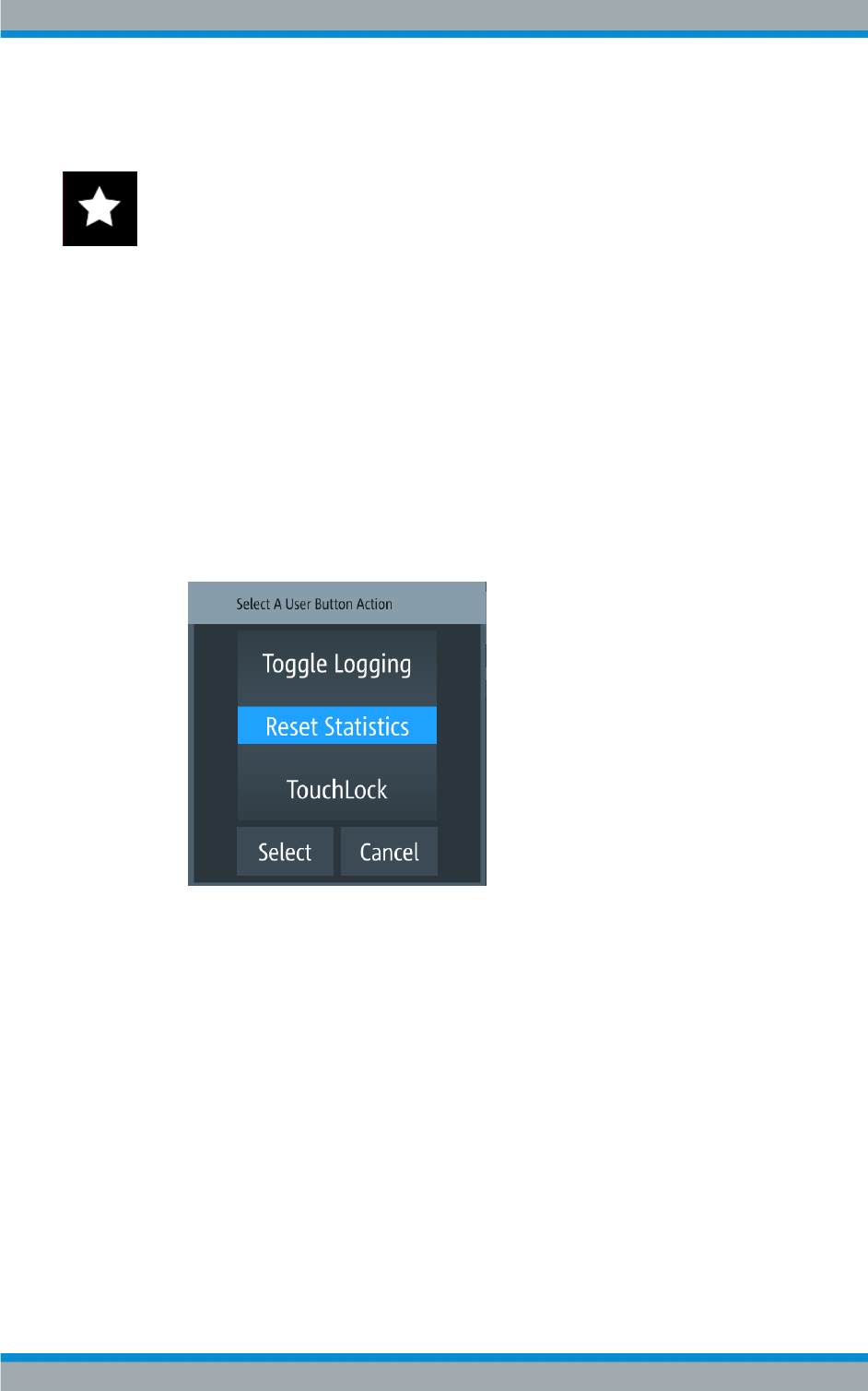

The R&S NGL200 displays a dialog to configure the user key action.
5. Select the required user key action.
● "Screenshot": Capture the current screen image of the instrument
● "Trigger": User button is use to activate the instrument trigger function
● "Toggle Logging": Enable/Disable the data logger function
● "Reset Statistics": Reset the sample count parameter in the home window
● "TouchLock": Enable/Disable the touchscreen function of the instrument
6. Select "Set" to confirm the action.
