14 Kinetix VP Low-inertia Servo Motor with 063…165 mm Frame Size
Rockwell Automation Publication VPL-IN001C-EN-P - November 2013

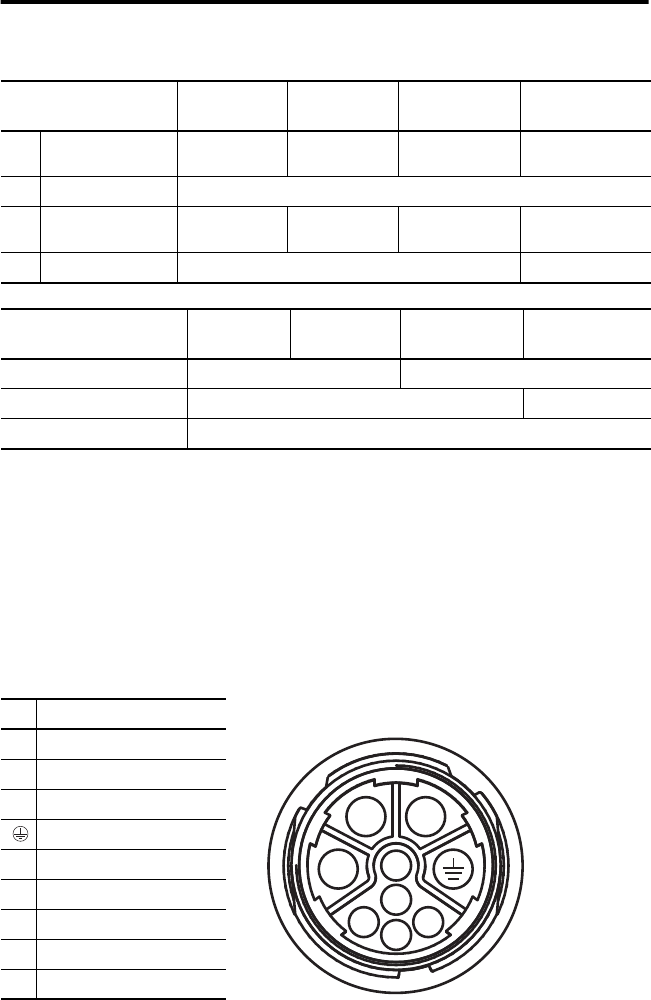

Tolerances and Supplemental Dimensions (100…165 mm frame sizes)
Connector Data
This section identified the power, feedback, and brake pins on the motor connectors.
M23 Motor Connector Pinouts
(for all motors except VPL-B1654D)
Tolerance VPL-A/B100x
mm (in.)
VPL-A/B115x
mm (in.)
VPL-A/B130x
mm (in.)
VPL-B165x
mm (in.)
D Shaft diameter
Ø 15.997…16.008
(0.6298…0.6301)
Ø 18.996…19.009
(0.7479…0.7483)
Ø 23.996…24.009
(0.9448…0.9451)
Ø 27.996…28.009
(1.1022…1.1027)
L-LB Shaft extension ±0.7 mm (±0.028)
N Pilot diameter
Ø 79.993…80.012
(3.1493…3.1501)
Ø 94.991…95.013
(3.7398…3.7407)
Ø 109.991…110.013
(4.3303…4.3312)
Ø 129.991…130.014
(5.1178…5.1187)
S Mounting hole diameter Ø +0.36, -0.0 (±0.007) Ø +0.43, -0.0 (±0.008)
Supplemental Dimension VPL-A/B100x
mm (in.)
VPL-A/B115x
mm (in.)
VPL-A/B130x
mm (in.)
VPL-B165x
mm (in.)
Pilot height 2.87 (0.113) 3.38 (0.133)
Pilot relief height 2.74 (0.108) 3.12 (0.123)
Shaft shoulder diameter
(1)
(1) Measured flush to pilot height.
2.87 (0.133)
(2)
(2) Tolerance is ±0.83, (±0.033).
Pin High Resolution Encoder
A Phase U
B Phase V
C Phase W
Ground
E DATA+
F MBRK+
G MBRK-
H DATA-
L Reserved
A
BC
G
H
LE
F
