Instruction Manual

10 Kinetix VP Low-inertia Servo Motor with 063…165 mm Frame Size
Rockwell Automation Publication VPL-IN001C-EN-P - November 2013

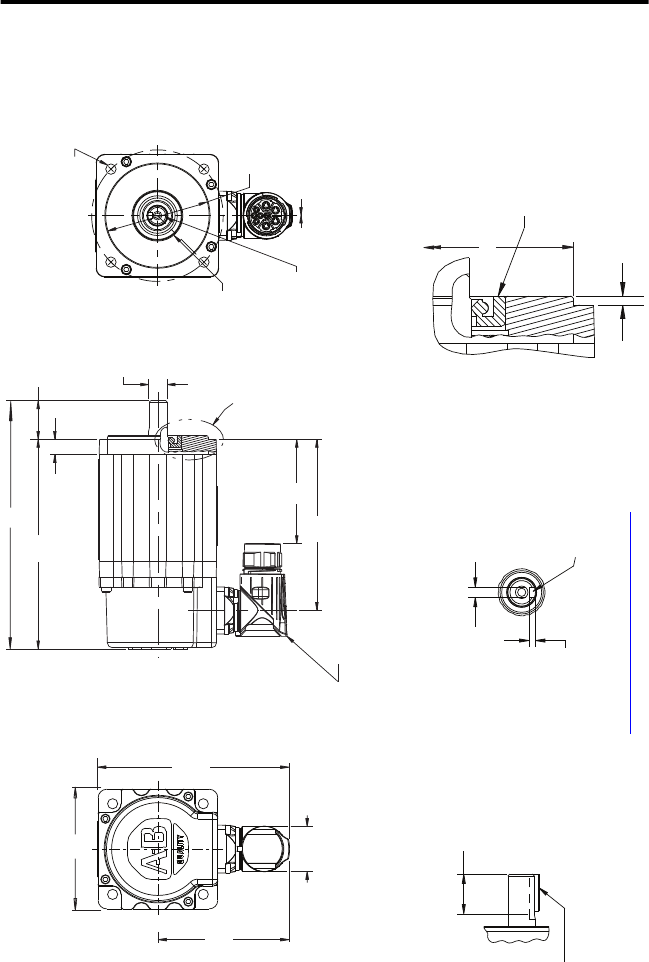

Motor Dimensions (063 and 075 mm frame sizes)
S Diameter Holes on
M Diameter Bolt Circle
N (pilot diameter)
Optional Shaft Seal
26.6 (1.05) M23 Connector
Shaft Hole Thread and Depth VPL-A/B063xx: Thread - M3 x 0.5-6H Thread Depth - 9.0 (0.354) VPL-A/B075xx: Thread - M4 x 0.7-6H Thread Depth - 10.0 (0.393)
0° ± 10° Shaft End Mark (or Key) Orientation for Encoder Absolute Position = 0.
Detail A
Optional Shaft Seal VPL-A/B063xx and VPL-A/B075xx: Ø 12 x Ø 28 x 7 (Ø 0.47 x Ø 1.10 x 0.27)
HD
AD
P
Connector rotates 325°
LE
LD
L - LB
D
LB
Key Not Shown For Clarity
Fully Developed Keyway Length VPL-A/B063xx = 14.0 (0.551) VPL-A/B075xx = 16.0 (0.630)
Key Supplied VPL-A/B063xx = 3 (+0, -0.025) x 3 (+0, -0.025) x 13 Key VPL-A/B075xx = 4 (+0, -0.030) x 4 (+0, -0.030) x 15 Key
Keyway Depth
VPL-A/B063xx = 1.80…1.90 (0.071…0.075) VPL-A/B075xx = 2.50…2.60 (0.098…0.102)
Keyway Width VPL-A/B063xx = 2.971…2.996 (0.117…0.118) VPL-A/B075xx = 3.970…4.000 (0.156…0.158)
Optional Shaft Key
Refer to Detail A
Motor Dimensions (063 and 075 mm frame sizes) on page 11
provides additional dimensions and tolerances not detailed in this diagram.
Pilot Height VPL-A/B063xx and VPL-A/B075xx = 2.1 (0.083)
LA
LD
L
N (pilot dIameter)
