Instruction Manual
Table Of Contents
- Intelligent Update Enhancement
- Enabling Intelligent Online Updates
- Manual function block matching (from release 3.5.1)
- Operation
- Important Information
- Intelligent Online Update Manager Window
- Intelligent Update Manager Options
- Match Function Blocks Window
- Intelligent Updates Manager Reports
- Operation
- Supported Changes
- General Rules
- Temporary Variables and Function Blocks (before release 3.5.1)
- Other issues
- Toolset upgrade to 3.51
- Virtual boards
- Unused local variables
- Baseline version
- Instance data limit exceeded
- Conversion tables
- OEM parameters
- ‘NO CHANGE’ when changes have been made
- Attribute changes
- Forced I/O
- Don’t delete the APPLI.MDF and APPLI.MDH files
- Real inline constants
- Don’t Update Later
- Processor hot swap and online update
- Counting Timer and update
- IOU Manager Options
- CRC Differences
- Communications Blackout
- Compilation for Intel
- Constant variables not updating when set to 0 initially
- Power Flow Debugging option change causes update problems on untouched programs
Trusted
TM
AN-T80009 Trusted
TM
Intelligent Online Updates
Issue 4 Nov 08 AN-T80009 3

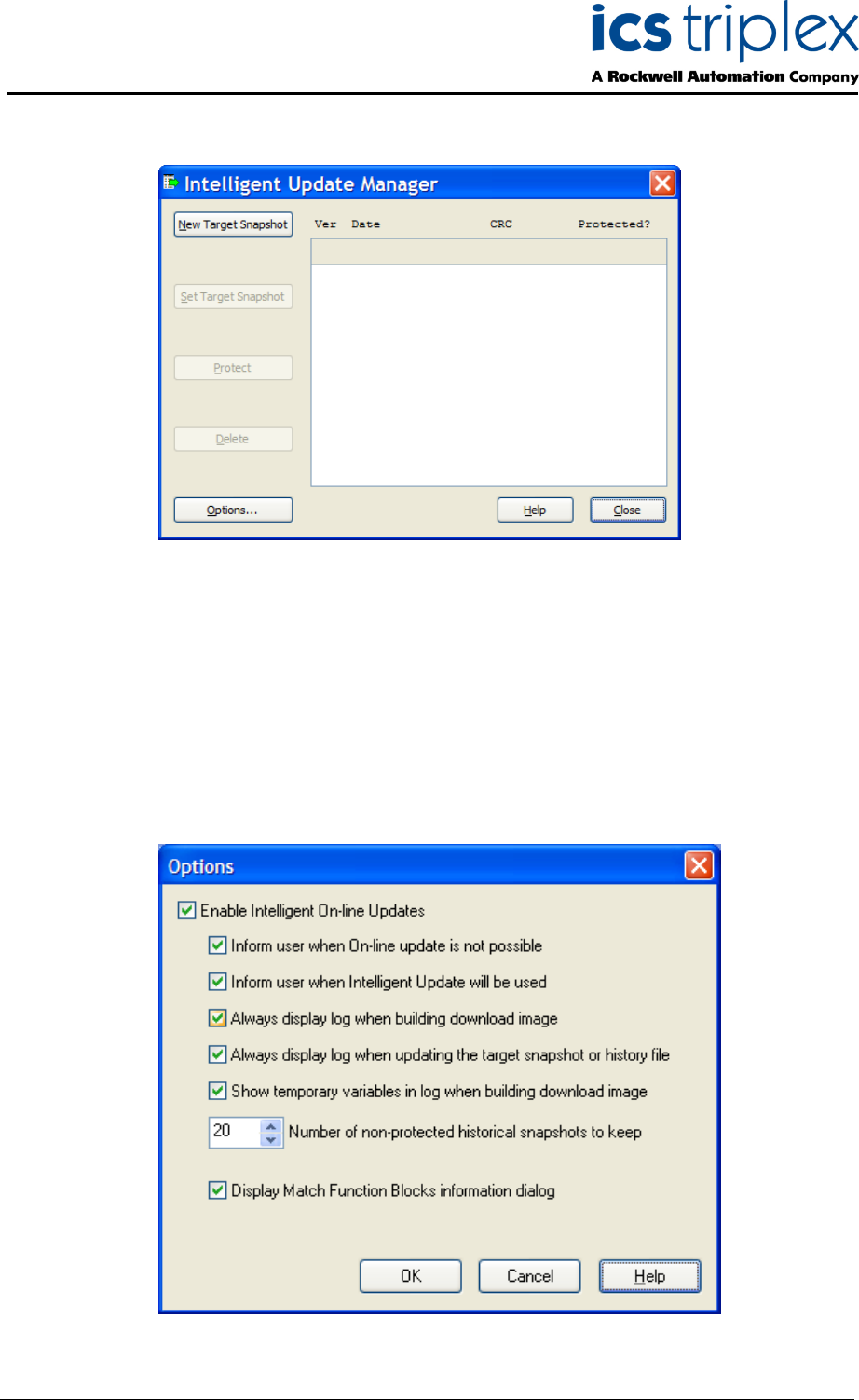

The Intelligent Update Manager window is shown in Figure 2 below. The controls are explained later in
this document.
Figure 2 Intelligent Update Manager
Intelligent Updates are disabled for a new project. To enable Intelligent Updates for a project, click on
the ‘Options…’ button to open the dialogue in Figure 3 below, then select ‘Enable Intelligent On-line
Updates’. It is recommended to select all five information options; these provide important information
at compilation and download which should be read with care.
‘Allow function block matching’ adds the ability to confirm the matching of function blocks between the
existing and new compilations. Its sub option enables the recording of previous matching decisions.
These options are available from release 3.5.1 and it is recommended to select these two options.
The options are explained later in this document.
Click ‘OK’.
Figure 3 Intelligent Update Options
