Trusted
TM
120Vac Isolated Digital Output FTA T8873
Issue 2 Feb 08 PD-T8873 14

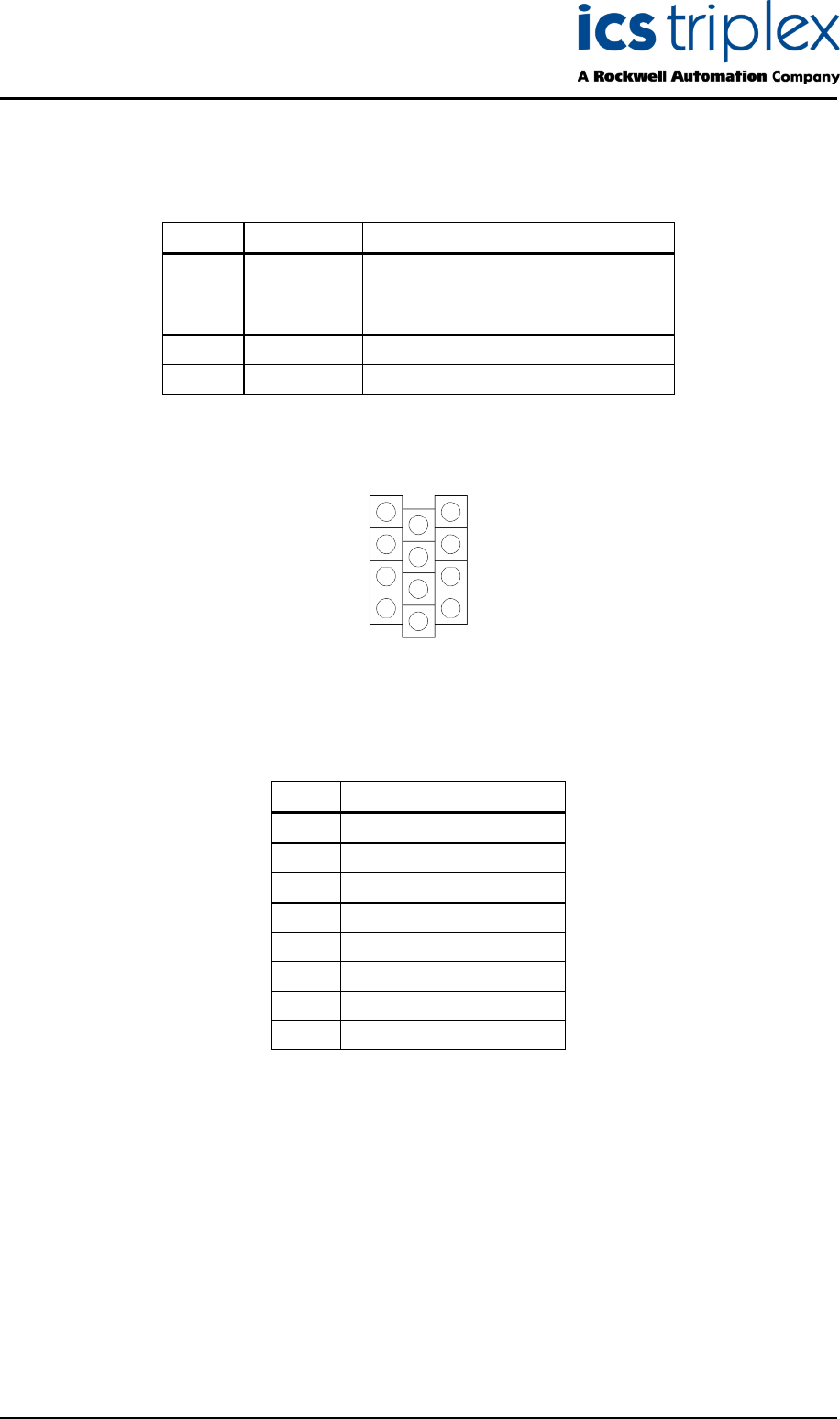

4.10. TB6 Field Connections
Group Column Service
Ch 13 L1,L2,N
Field device connection channel 13
(2 Balanced Lives ,Neutral)
Ch 14 L1,L2,N Field device connection channel 14
Ch 15 L1,L2,N Field device connection channel 15
Ch 16 L1,L2,N Field device connection channel 16
Table 10 TB6 Connections
Figure 3 TB1, TB2, TB5 and TB6 Connections (example)
4.11. TB3 and TB7 Earth Connection
Pin Service
1 Earth
2 Earth
3 Earth
4 Earth
5 Earth
6 Earth
7 Earth
8 Earth
Table 11 Field earth connections
L1
L2
N
Channel 1
