2. Installation
2.1. Chassis Mounting

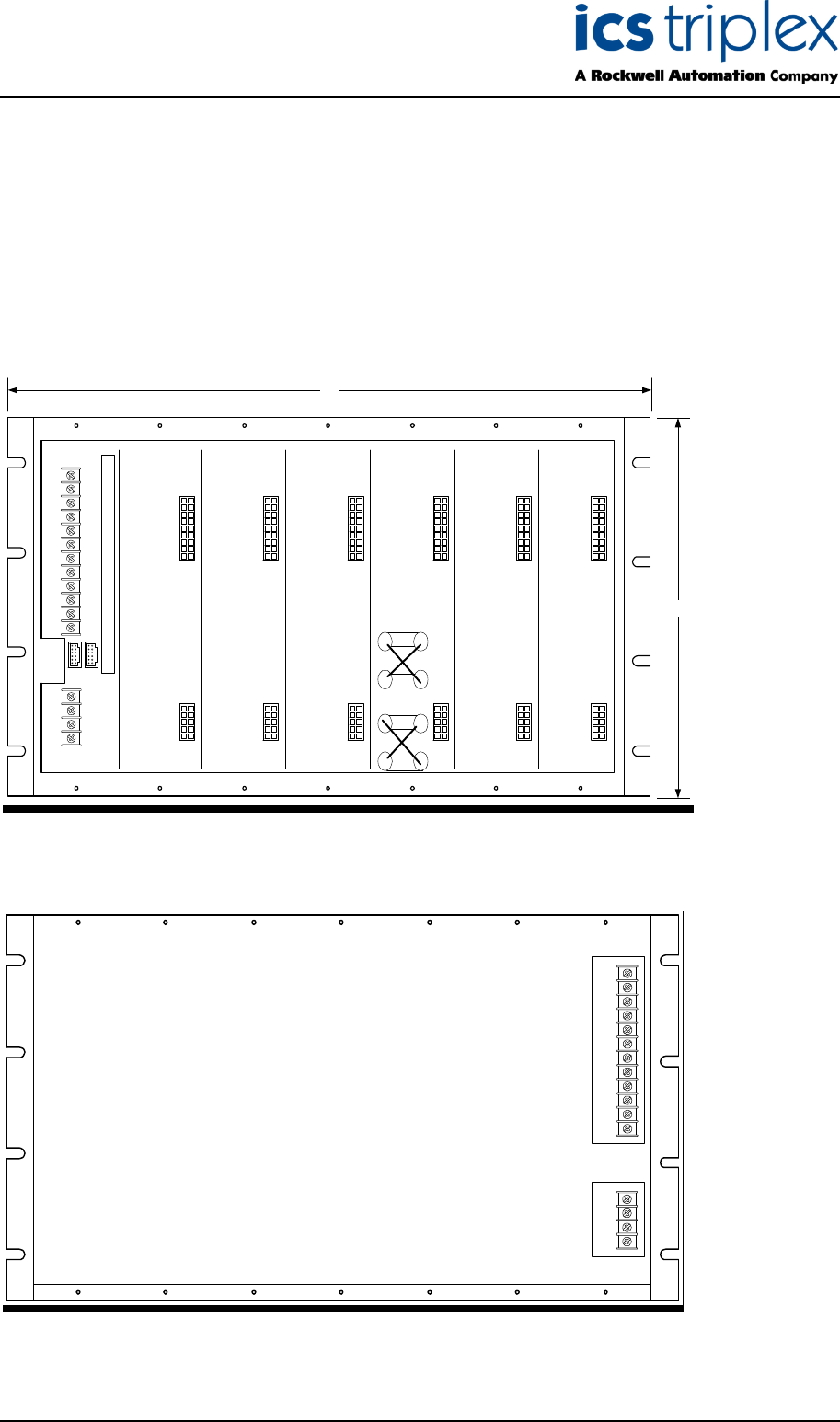

Figure 4 and Figure 5 show the front and rear views of the power supply chassis.
TB3
J13
J15
TB1
J14
1
9"
10.5"
J1 J2 J3 J4 J6J5
J7 J8 J12J11J9J10
Input
Crossover
Patch
Figure 4 Power Supply Chassis Front View
TB4
TB2
Figure 5 Power Supply Chassis Rear View
