Trusted
TM
Valve Manager T8031
Issue 2 Oct 05 PD-T8031 48
History Table
The History Table view displays information about all of the recorded tests for the selected valve in a
tabular format. The “Result” field indicates the overall test result as in the Last Test view, however any
transition times that did not pass the threshold minimum or maximum times as defined in the valve’s
profile will be red.

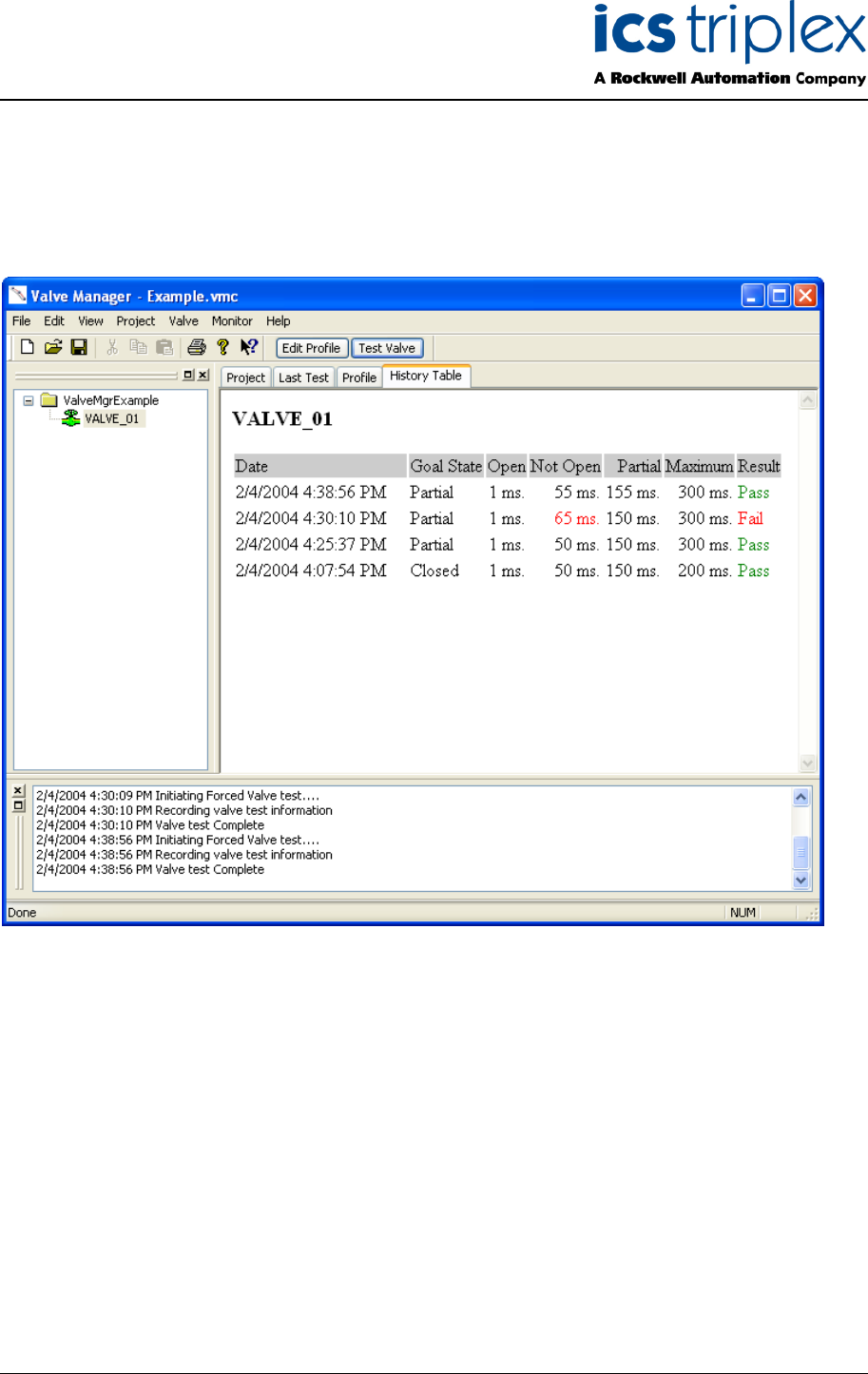

Figure 50 Valve Test History
