Trusted
TM
Valve Manager T8031
Issue 2 Oct 05 PD-T8031 46
The overall “Result” field for the test and the individual “Result” fields in the transition time table will turn
red when a failure is being reported. Additionally, the text below the overall “Result” field will describe
the type of failure.

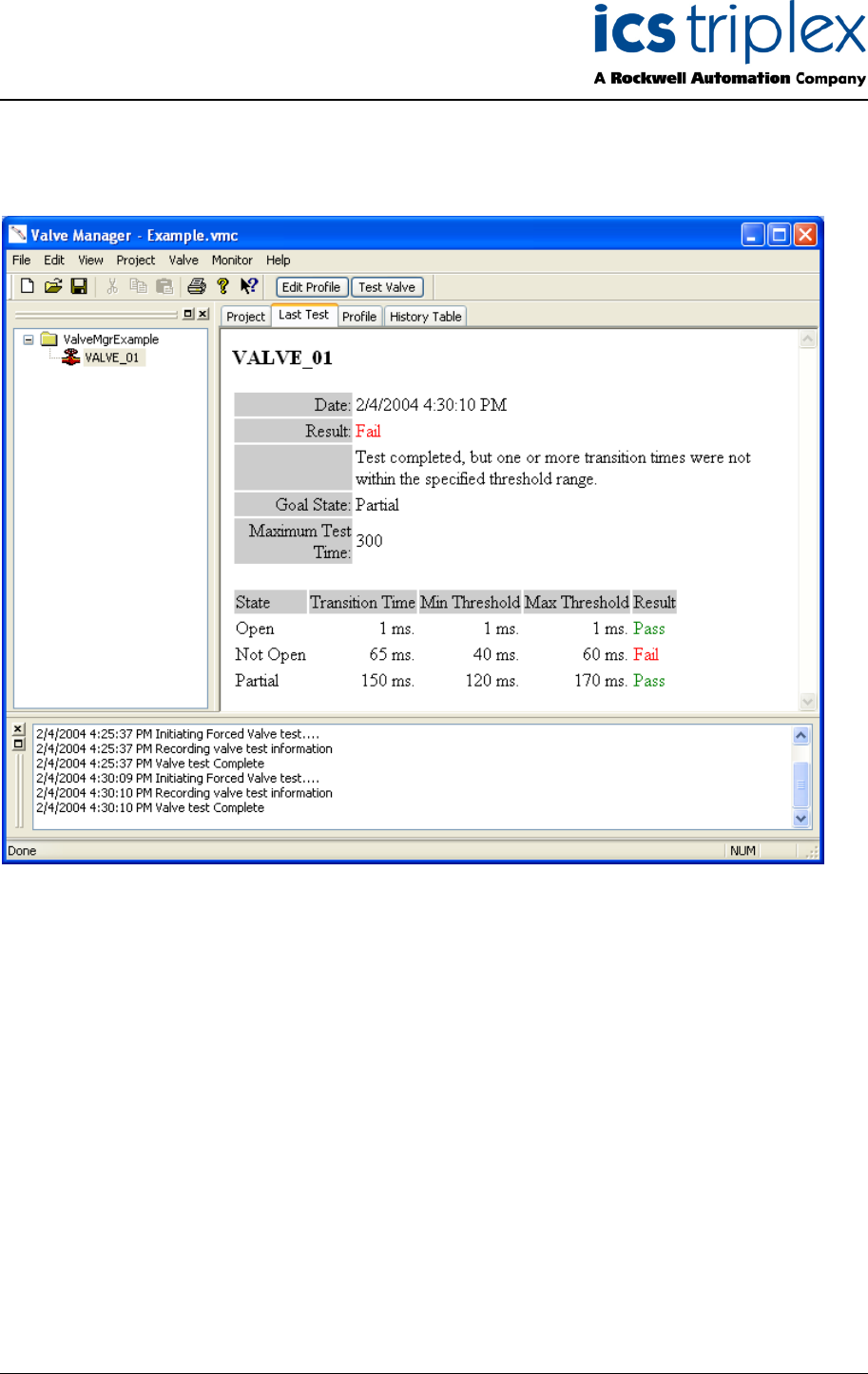

Figure 48 Valve Test Failure
