Valve Manager T8031
Issue 2 Oct 05 PD-T8031 16

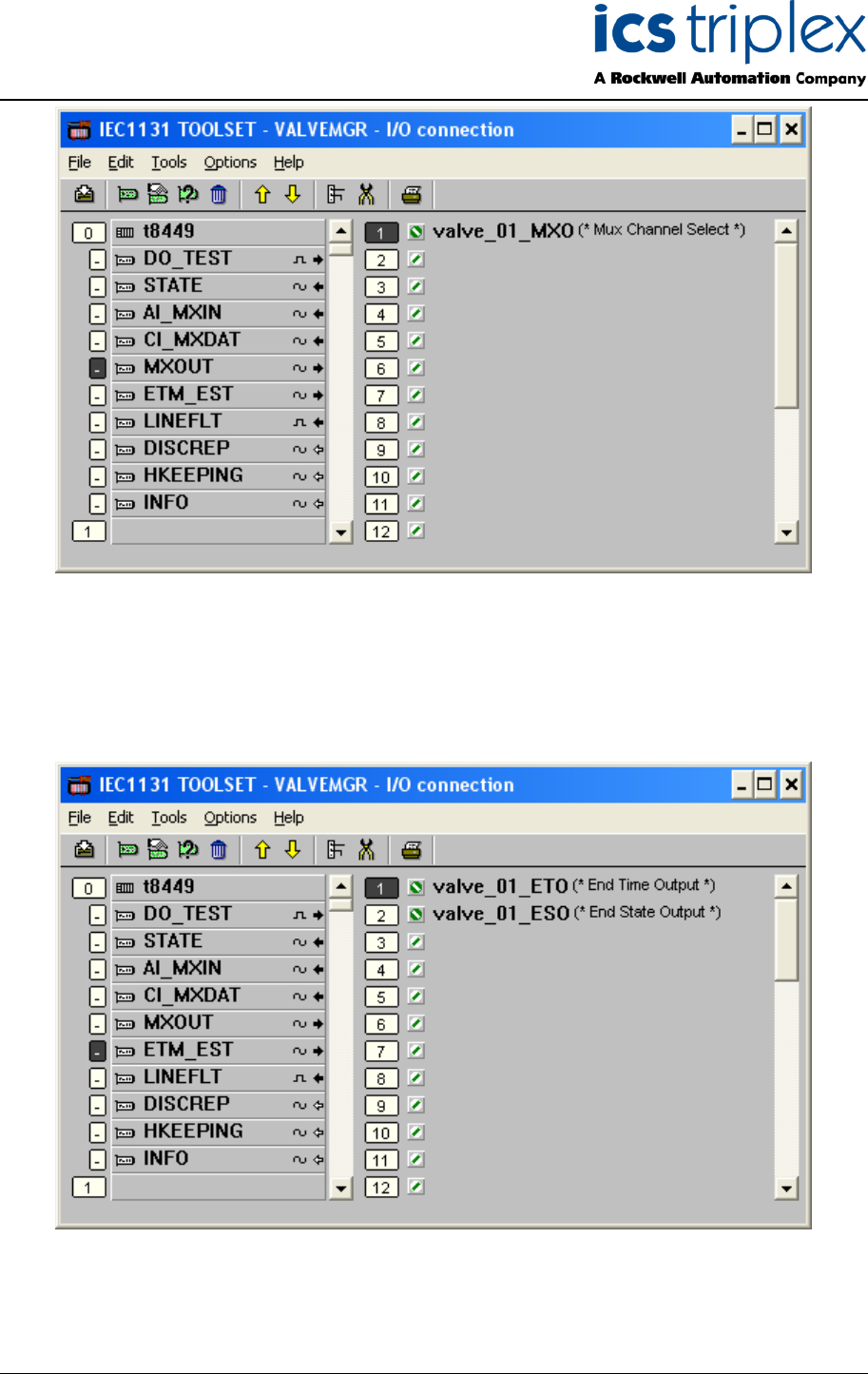

Figure 8 MXDAT board
Connect the “_ETO” tags to the odd channels and the “_ESO” tags to the even channels of the
ETM_EST board.
Figure 9 ETM_EST board
Connect the “_DOF” tags to the odd channels and the “_VPF” tags to the even channels of the
LINEFLT board.
