Valve Manager T8031
Issue 2 Oct 05 PD-T8031 14

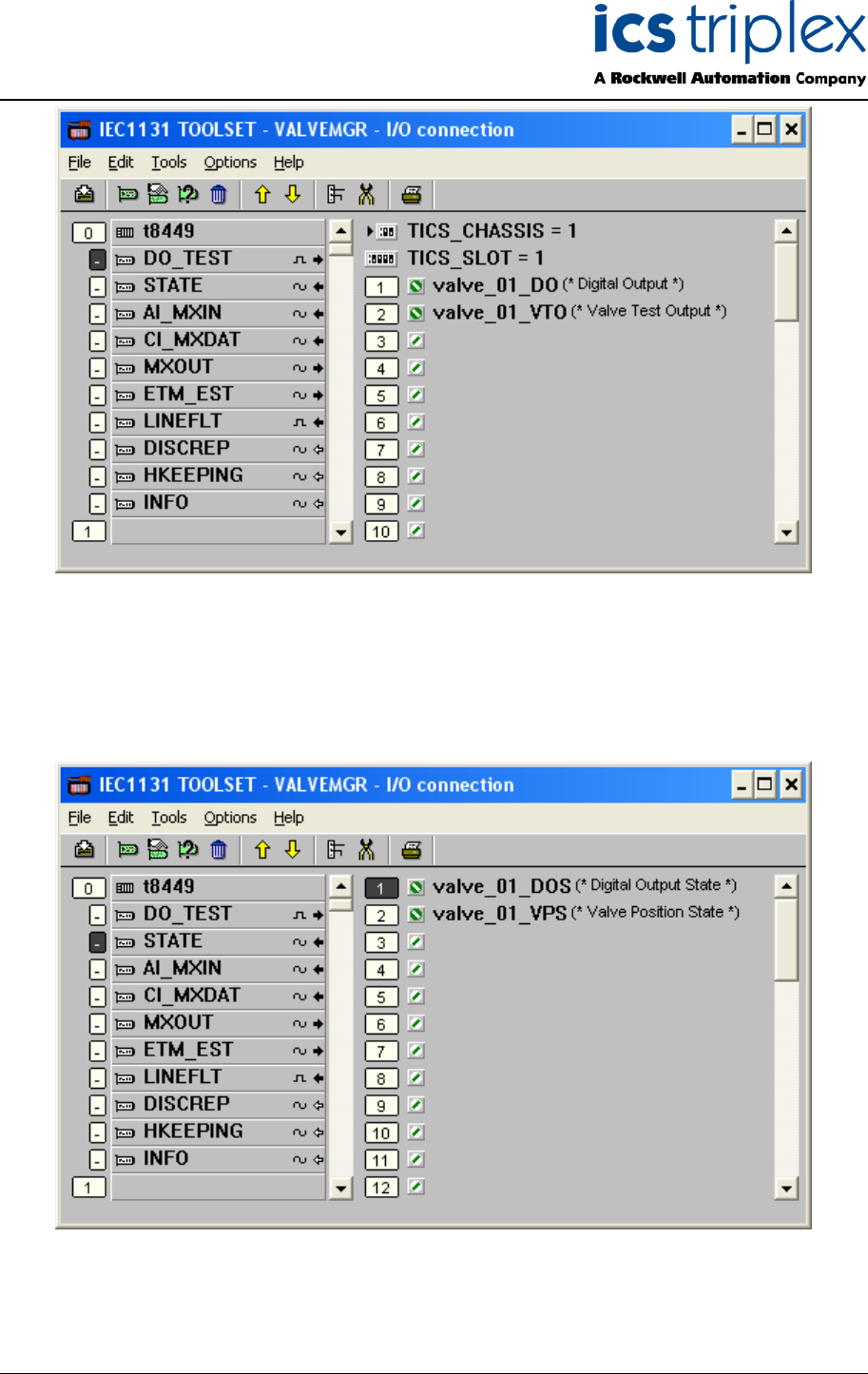

Figure 4 DO_TEST board
Connect the “_DOS” tags to the odd channels and the “_VPS” tags to the even channels of the STATE
board.
Figure 5 STATE board
Connect the “_DOV” tags to the odd channels and the “_MXI” tags to the even channels of the
AI_MXIN board.
