Manual

Technical Specifications
A-9
Power Dissipation
The 3000A Power Module dissipates power proportionally to the armature current, as
shown in figure A.8.
Circuit Breaker Settings
The 3000A Power Module has a 3000A SPB-frame circuit breaker. The circuit breaker
should be set as shown in figure A.9.

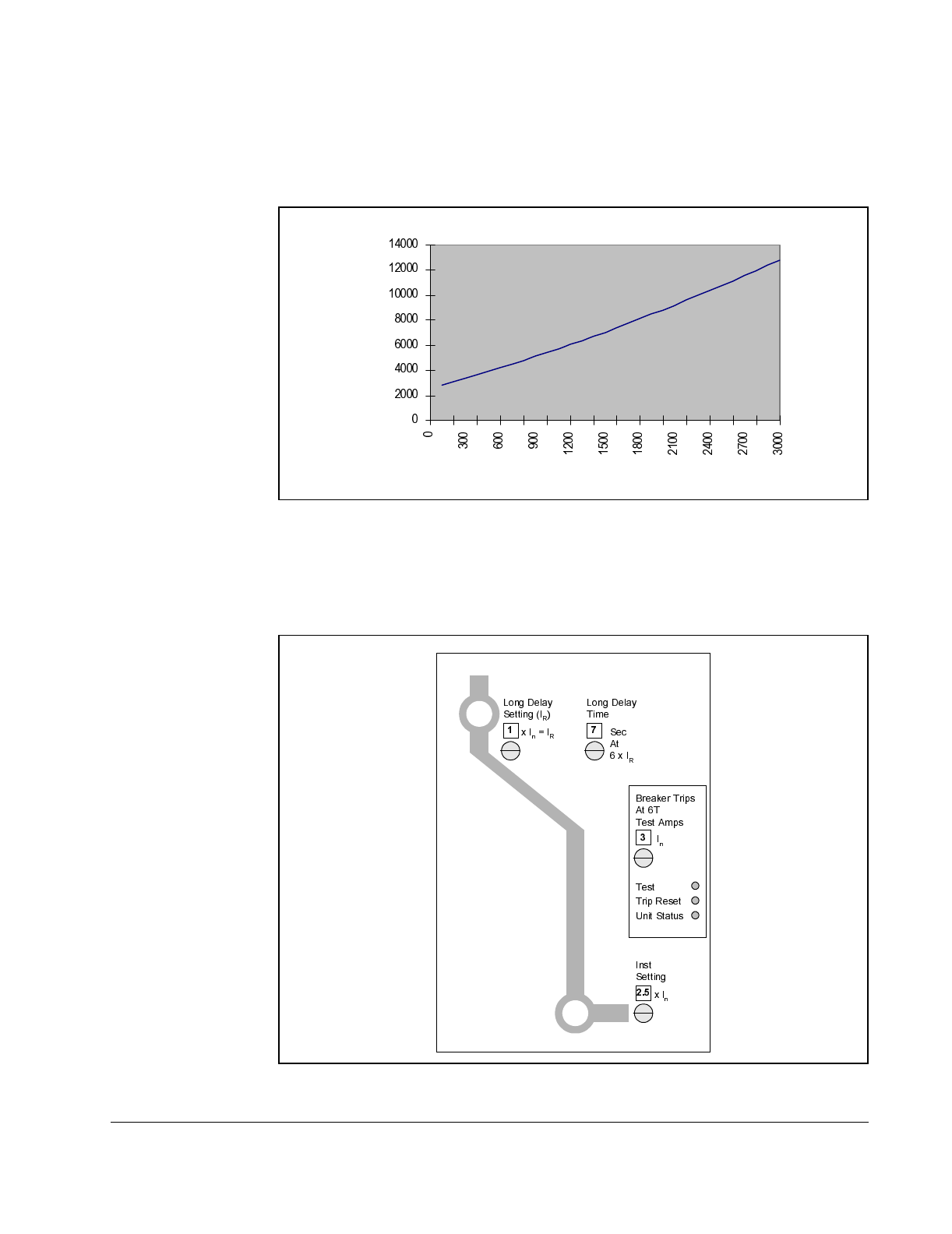

Figure A.8 – Power Dissipation vs. Armature Current (3000A Power Module
Figure A.9 – Recommended Circuit Breaker Settings (3000A Power Module)
Armature Current (A)
Heat Dissipation (W)
