SD3100 Power Modules
Power Dissipation
The 1650A Power Module dissipates power proportionally to the armature current, as
shown in figure A.5.
Circuit Breaker Settings
The 1650A Power Module has a 1600A R-frame circuit breaker with a 1600A plug.
The circuit breaker should be set as shown in figure A.6.

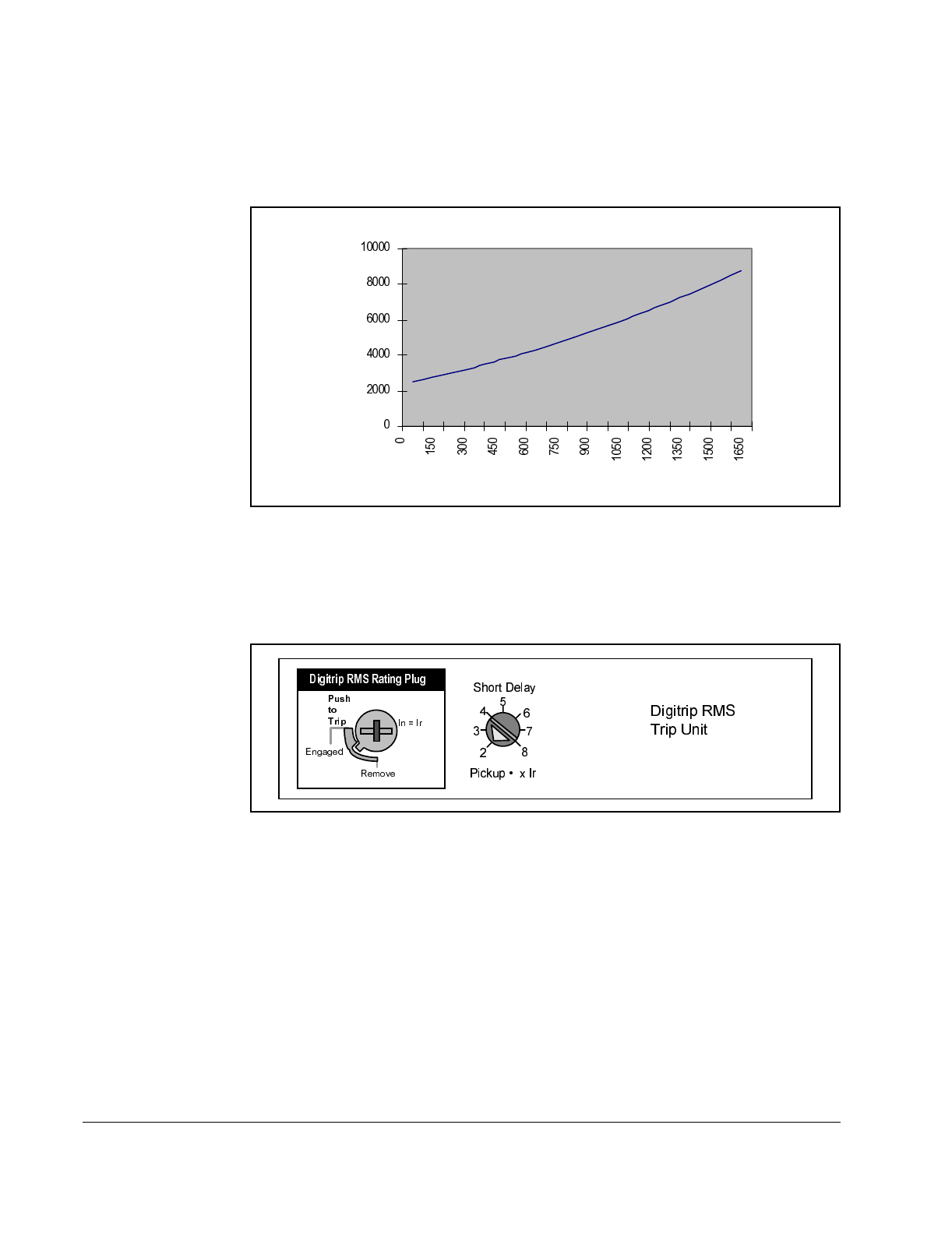

Figure A.5 – Power Dissipation vs. Armature Current (1650A Power Module)
Figure A.6 – Recommended Circuit Breaker Settings (1650A Power Module)
Armature Current (A)
Heat Dissipation (W)
