Technical Specifications
A-3
Power Dissipation
The 1250A Power Module dissipates power proportionally to the armature current, as
shown in figure A.2.
Circuit Breaker Settings
The 1250A Power Module has a 1200A N-frame circuit breaker with a 1200A plug.
The circuit breaker should be set as shown in figure A.3.

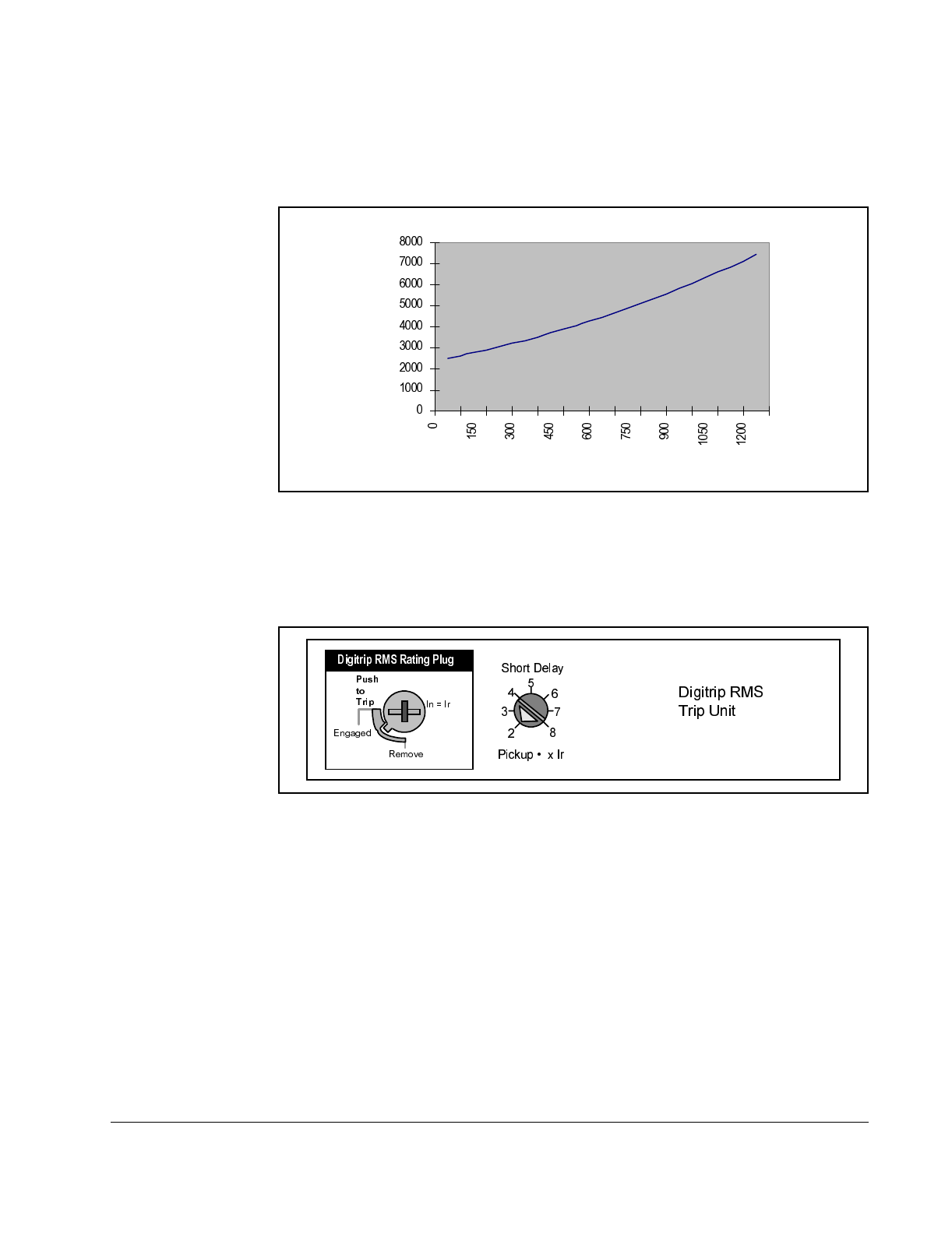

Figure A.2 – Power Dissipation vs. Armature Current (1250A Power Module)
Figure A.3 – Recommended Circuit Breaker Settings (1250A Power Module)
Armature Current (A)
Heat Dissipation (W)
