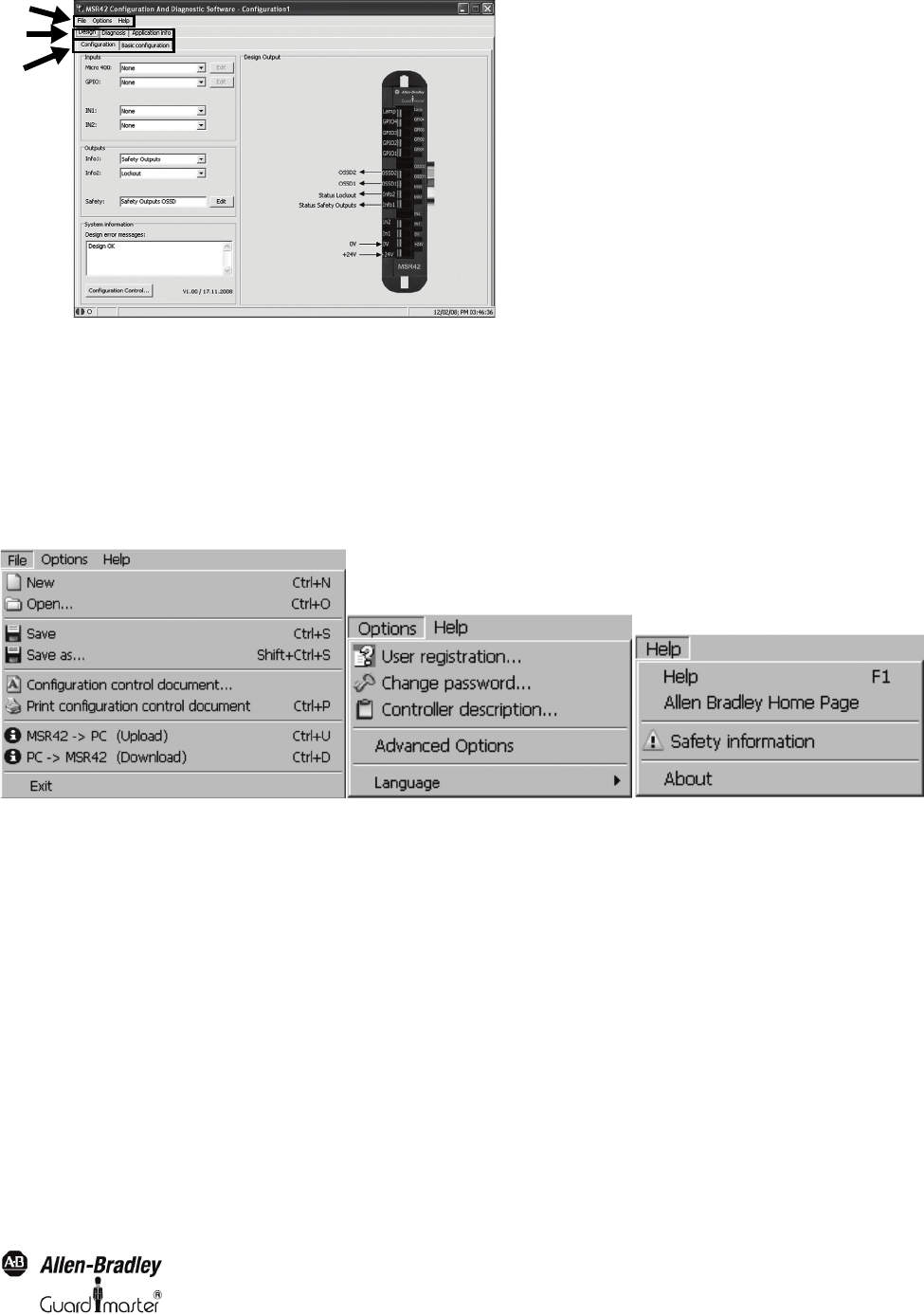

Figure 20: Main window with menu bar (1) and main tabs (2) as well as sub-tabs (3)
5.3. The menu bar
The menu bar contains three pull-down menus:
1. File
2. Options
3. Help
Figure 21: Items in the Menu bar
5.3.1. Menu “File”
Menu “New”
Create a new configuration.
Menu “Open”
Opens an existing configuration file according to the given String and Data name. “*.cfg” is defined as the standard extension for the configuration data
name.
Menu “Save”
Saves the current configuration under the most recent name and location.
Menu “Save as”
Saves the current configuration under a new name and given location.
