MP-Series Integrated Gear Motor Installation Instructions 3
Publication MP-IN003C-EN-P — April 2003

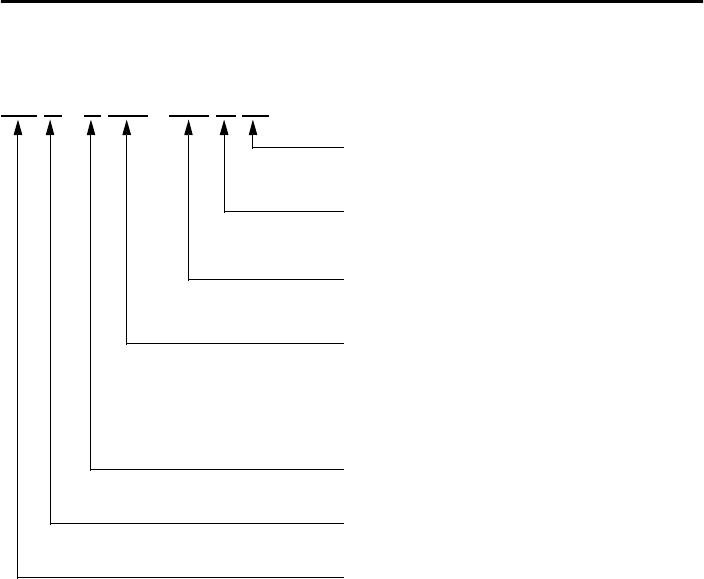

Motor Catalog Number Identification
BRAKE
22 = No Brake
24 = 24V dc Holding Brake
FEEDBACK
M = Multi-turn High Resolution Encoder
S = Single-turn High Resolution Encoder
GEAR REDUCTION
031 = 31 to 1
091 = 91 to 1
MOTOR FRAME SIZE
004 = 004 Frame
010 = 010 Frame
025 = 025 Frame
050 = 050 Frame
110 = 110 Frame
VOLTAGE RATING OF MOTOR
A=230Vac
B=460Vac
SERIES TYPE
G = Integrated Gear
BULLETIN
MP G -A010 -031M 22
