MP-Series Integrated Gear Motor Installation Instructions 21
Publication MP-IN003C-EN-P — April 2003

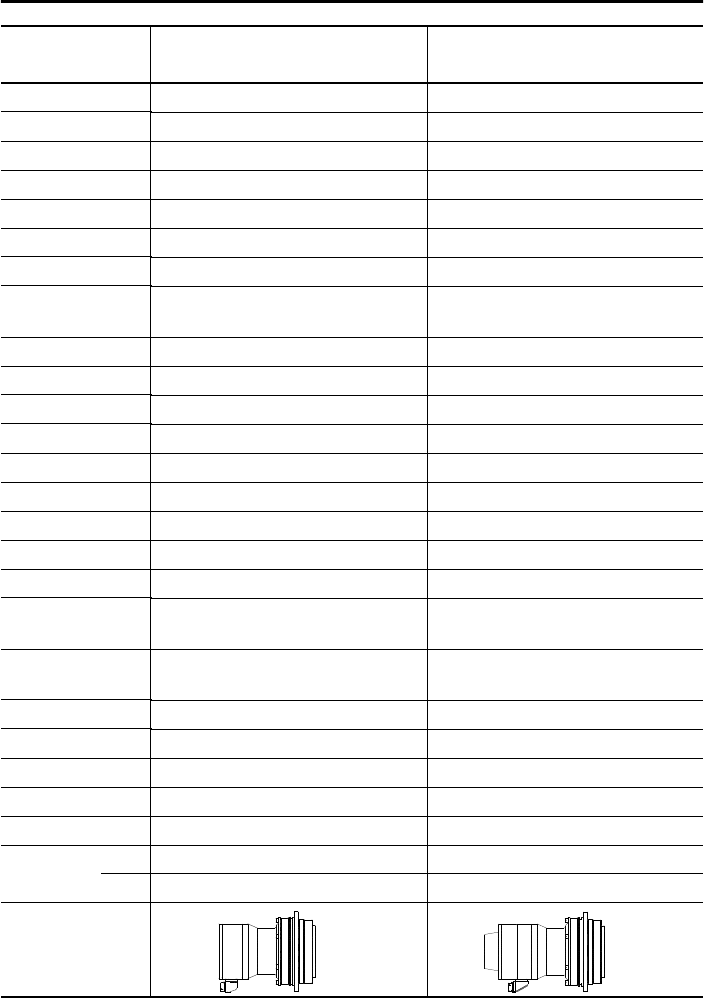

Motor Dimension
Symbol
1, 2
MPG-x110-091x22 MPG-x110-091x24
mm (in.) mm (in.)
AC
212 (8.35) 212 (8.35)
AD
127 (5.0) 126.1 (4.96)
AE
171 (6.73) 171 (6.73)
AF
N/A 120 (4.72)
AG
N/A 106 (4.17)
BE
67.7 (2.67) 88.9 (3.50)
D
159.96 - 160 (6.2976) - (6.2992) 159.96 - 160 (6.2976) - (6.2992)
DB
80 - 80.03 x
8 DP
(3.1496) - (3.1508)
x (0.31) DP
80 - 80.03 x
8 DP
(3.1496) - (3.1508)
x (0.31) DP
E
8 (0.31) 8 (0.31)
HD
250.5 (9.86) 249.6 (9.83)
L
285 (11.22) 357 (14.06)
L-LB
50 (1.97) 50 (1.97)
LA
12 (0.47) 12 (0.47)
LB
235 (9.35) 307 (12.09)
LD
229.7 (9.04) 235.6 (9.28)
LE
N/A 41 (1.61)
M
233 (9.17) 233 (9.17)
MA on MC
M10 x 20 on
125 BC
(M10 x (0.79) on
(4.92) BC
M10 x 20 on
125 BC
(M10 x (0.79) on
(4.92) BC
MB
10 - 10.015
x 10 DP
(0.3937) - (0.3943)
x (0.39) DP
10 - 10.015
x 10 DP
(0.3937) - (0.3943)
x (0.39) DP
N
199.954 - 200 (7.8722) - (7.8740) 199.954 - 200 (7.8722) - (7.8740)
NB
196 (7.72) 196 (7.72)
P
247 (9.72) 247 (9.72)
S on M
9 on 233 BC (0.35) on (9.17) BC 9 on 233 BC (0.35) on (9.17) BC
T
15 (0.59) 15 (0.59)
Bolt Hole
BHP 30
o
30
o
Patterns:
BHPA N/A N/A
Motor Outline
1
Motors are designed to metric dimensions (inch references are mathematical conversions).
2
Abbreviations: BC = Bolt Circle, BHP/BHPA = Bolt Hole Patterns, DP = Depth.
