MP-Series Integrated Gear Motor Installation Instructions 19
Publication MP-IN003C-EN-P — April 2003

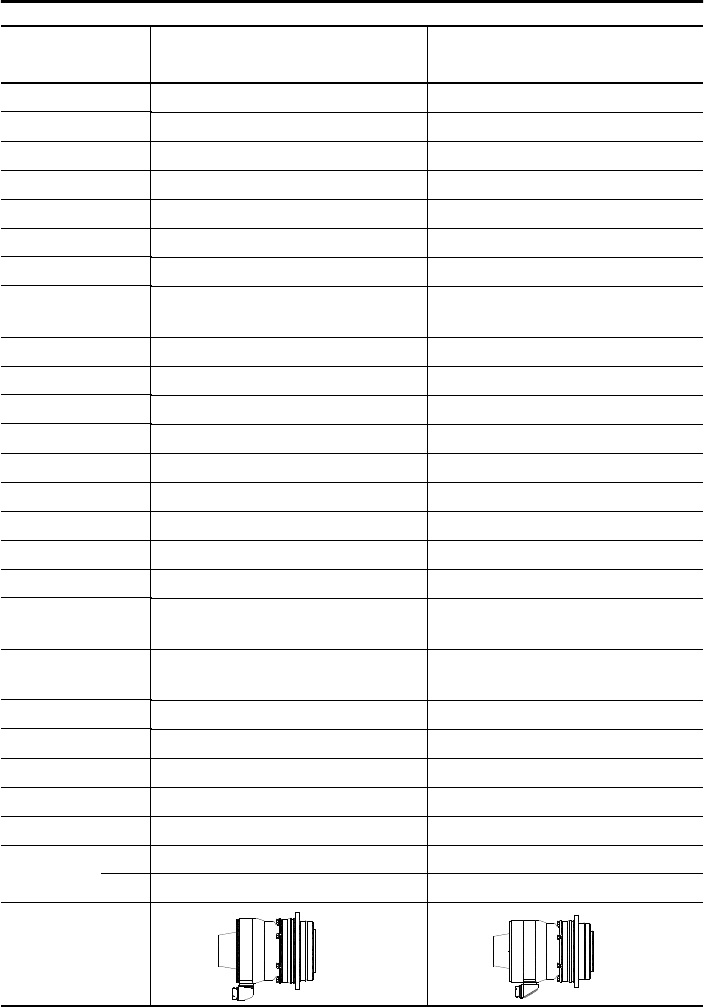

Motor Dimension
Symbol
1, 2
MPG-x050-091x22 MPG-x050-091x24
mm (in.) mm (in.)
AC
152 (5.98) 152 (5.98)
AD
116.5 (4.59) 115.6 (4.55)
AE
150.5 (5.93) 151 (5.94)
AF
86 (3.39) 86 (3.39)
AG
72 (2.83) 72 (2.83)
BE
67.7 (2.67) 88.9 (3.50)
D
99.965 - 100 (3.9356) - (3.9370) 99.965 - 100 (3.9356) - (3.9370)
DB
50 - 50.025
x 6 DP
(1.9685) - (1.9695)
x (0.24) DP
50 - 50.025
x 6 DP
(1.9685) - (1.9695)
x (0.24) DP
E
6 (0.24) 6 (0.24)
HD
206 (8.11) 205.1 (8.07)
L
227 (8.94) 256.5 (10.10)
L-LB
38 (1.50) 38 (1.50)
LA
10 (0.39) 10 (0.39)
LB
189 (7.44) 218.5 (8.60)
LD
156 (6.14) 161.9 (6.37)
LE
42 (1.65) 42 (1.65)
M
168.0 (6.61) 168.0 (6.61)
MA on MC
M8 x 15 DP on
80 BC
M8 x (0.59) DP on
(3.15) BC
M8 x 15 DP on
80 BC
M8 x (0.59) DP on
(3.15) BC
MB
8.0 - 8.015
x 7 DP
(0.3150) - (0.3156)
x (0.28) DP
8.0 - 8.015
x 7 DP
(0.3150) - (0.3156)
x (0.28) DP
N
139.96 - 140 (5.5102) - (5.5118) 139.96 - 140 (5.5102) - (5.5118)
NB
136 (5.35) 136 (5.35)
P
179 (7.05) 179 (7.05)
S on M
6.6 on 168 BC (0.26) on (6.61) BC 6.6 on 168 BC (0.26) on (6.61) BC
T
14.6 (0.57) 14.6 (0.57)
Bolt Hole
BHP 30
o
30
o
Patterns:
BHPA N/A N/A
Motor Outline
1
Motors are designed to metric dimensions (inch references are mathematical conversions).
2
Abbreviations: BC = Bolt Circle, BHP/BHPA = Bolt Hole Patterns, DP = Depth.
