18 MP-Series Integrated Gear Motor Installation Instructions
Publication MP-IN003C-EN-P — April 2003

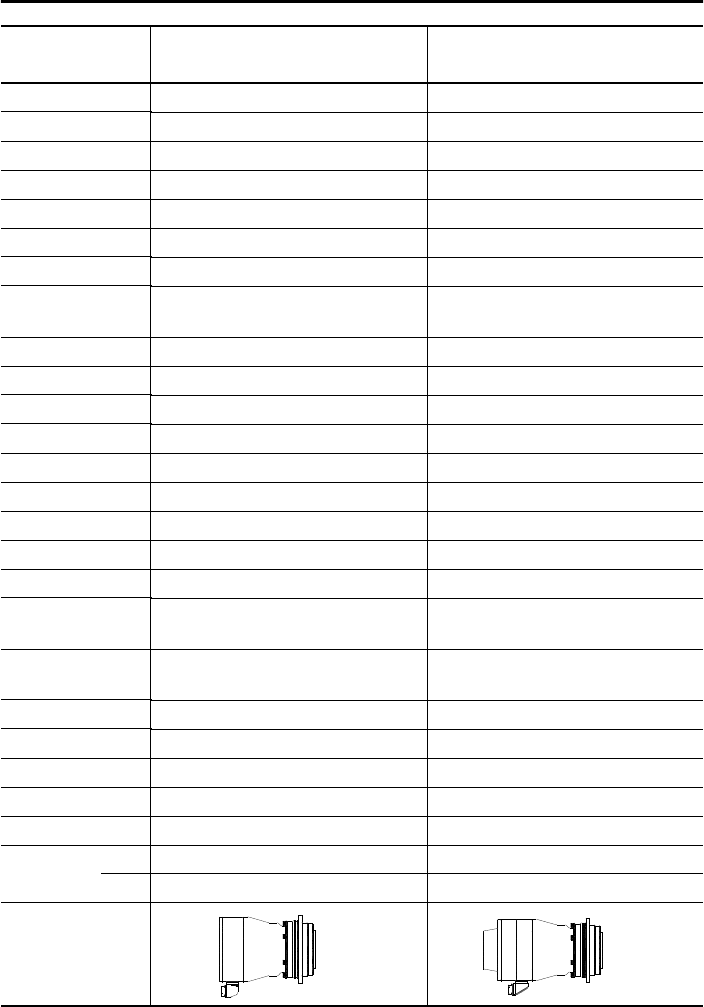

Motor Dimension
Symbol
1, 2
MPG-x050-031x22 MPG-x050-031x24
mm (in.) mm (in.)
AC
152 (5.98) 152 (5.98)
AD
127 (5.00) 126.1 (4.96)
AE
171 (6.73) 171 (6.73)
AF
N/A 120 (4.72)
AG
N/A 104 (4.09)
BE
67.7 (2.67) 88.9 (3.50)
D
99.965 - 100 (3.9356) - (3.9370) 99.965 - 100 (3.9356) - (3.9370)
DB
50 - 50.025
x 6 DP
(1.9685) - (1.9695)
x (0.24) DP
50 - 50.025
x 6 DP
(1.9685) - (1.9695)
x (0.24) DP
E
6 (0.24) 6 (0.24)
HD
216.2 (8.51) 215.6 (8.49)
L
274.0 (10.79) 346 (13.63)
L-LB
38 (1.50) 38 (1.50)
LA
10 (0.39) 10 (0.39)
LB
236 (9.29) 308 (12.13)
LD
230.7 (9.08) 236.6 (9.31)
LE
N/A 41 (1.61)
M
168.0 (6.61) 168.0 (6.61)
MA on MC
M8 x 15 DP on
80 BC
(M8 x (0.59) DP on
(3.15) BC
M8 x 15 DP on
80 BC
(M8 x (0.59) DP on
(3.15) BC
MB
8.0 - 8.015
x 7 DP
(0.3150) - (0.3156)
x (0.28) DP
8.0 - 8.015
x 7 DP
(0.3150) - (0.3156)
x (0.28) DP
N
139.96 - 140 (5.5102) - (5.5118) 139.96 - 140 (5.5102) - (5.5118)
NB
136 (5.35) 136 (5.35)
P
179 (7.05) 179 (7.05)
S on M
6.6 on 168 BC (0.26) on (6.61) BC 6.6 on 168 BC (0.26) on (6.61) BC
T
14.6 (0.57) 14.6 (0.57)
Bolt Hole
BHP 30
o
30
o
Patterns:
BHPA N/A N/A
Motor Outline
1
Motors are designed to metric dimensions (inch references are mathematical conversions).
2
Abbreviations: BC = Bolt Circle, BHP/BHPA = Bolt Hole Patterns, DP = Depth.
